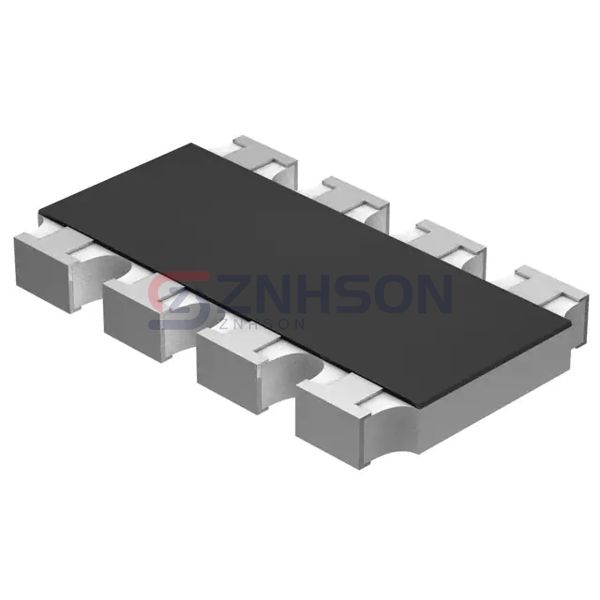

CRA12E083560KJTR
Vishay Dale
Vishay Dale
RES ARRAY 4 RES 560K OHM 2012
$0.00
Available to order
Reference Price (USD)
2,000+
$0.06000
6,000+
$0.05400
10,000+
$0.05280
50,000+
$0.05000
100,000+
$0.04952
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Vishay Dale's CRA12E083560KJTR resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every CRA12E083560KJTR unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Obsolete
- Circuit Type: Isolated
- Resistance (Ohms): 560k
- Tolerance: ±5%
- Number of Resistors: 4
- Resistor Matching Ratio: -
- Resistor-Ratio-Drift: -
- Number of Pins: 8
- Power Per Element: 125mW
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 155°C
- Applications: -
- Mounting Type: Surface Mount
- Package / Case: 2012, Convex, Long Side Terminals
- Supplier Device Package: -
- Size / Dimension: 0.200" L x 0.120" W (5.08mm x 3.05mm)
- Height - Seated (Max): 0.028" (0.70mm)
