CPC1303G
IXYS Integrated Circuits Division
IXYS Integrated Circuits Division
OPTOISOLATOR 5KV TRANSISTOR 4DIP
$1.87
Available to order
Reference Price (USD)
500+
$0.45900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior signal isolation with IXYS Integrated Circuits Division's CPC1303G Optoisolators - Transistor, Photovoltaic Output. These components are ideal for data acquisition, process control, and safety systems, offering fast response times and high insulation resistance. With IXYS Integrated Circuits Division's commitment to innovation, you can expect cutting-edge solutions for your technical challenges. Reach out now to request a quote and elevate your designs!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 200% @ 200µA
- Current Transfer Ratio (Max): 2500% @ 200µA
- Turn On / Turn Off Time (Typ): 2µs, 8µs
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 30V
- Current - Output / Channel: -
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 50 mA
- Vce Saturation (Max): 500mV
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Through Hole
- Package / Case: 4-DIP (0.300", 7.62mm)
- Supplier Device Package: 4-DIP
Related Products
Vishay Semiconductor Opto Division
4N35-X007
Renesas Electronics America Inc

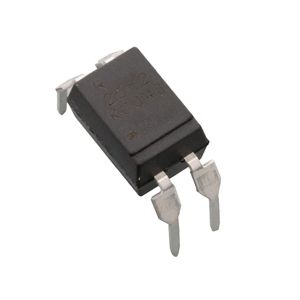

PS2561AL1-1-L-A
Isocom Components 2004 LTD

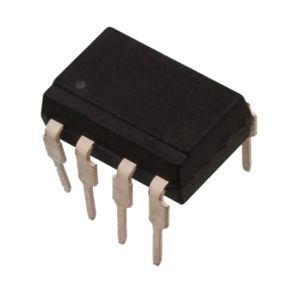

MCT6X
Fairchild Semiconductor
CNY17F4S
Everlight Electronics Co Ltd

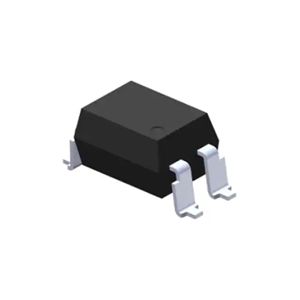

EL817(S1)(D)(TD)
Everlight Electronics Co Ltd
4N32S1(TB)
Vishay Semiconductor Opto Division

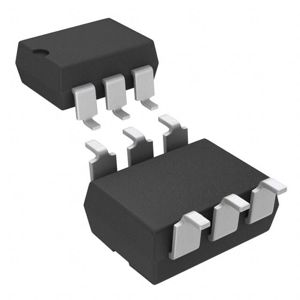

4N38-X007
Vishay Semiconductor Opto Division

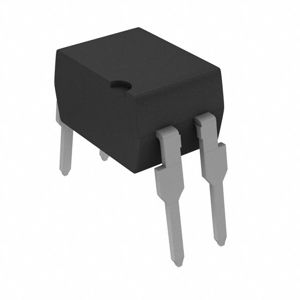

VO615A-6X001
Renesas Electronics America Inc

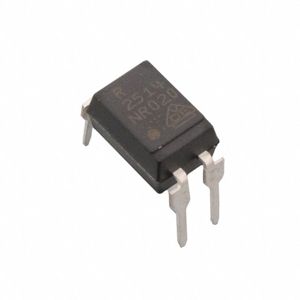

PS2514-1Y-V-A
