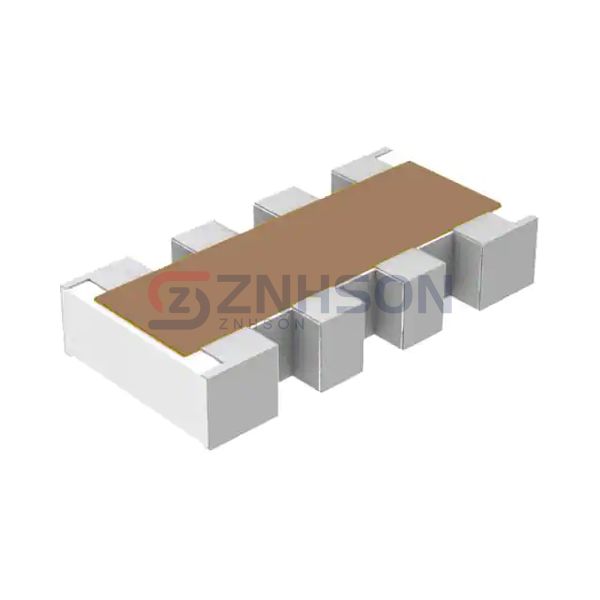

CN22F56R2CT
CAL-CHIP ELECTRONICS, INC.
CAL-CHIP ELECTRONICS, INC.
RESARRAY0402X2 1% 56.2 OHM
$0.01
Available to order
Reference Price (USD)
1+
$0.01000
500+
$0.0099
1000+
$0.0098
1500+
$0.0097
2000+
$0.0096
2500+
$0.0095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with CAL-CHIP ELECTRONICS, INC.'s CN22F56R2CT resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every CN22F56R2CT unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Isolated
- Resistance (Ohms): 56.2
- Tolerance: ±1%
- Number of Resistors: 2
- Resistor Matching Ratio: -
- Resistor-Ratio-Drift: -
- Number of Pins: 8
- Power Per Element: 62.5mW
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: -
- Mounting Type: Surface Mount
- Package / Case: 0404 (1010 Metric), Convex
- Supplier Device Package: 0404
- Size / Dimension: 0.039" L x 0.039" W (1.00mm x 1.00mm)
- Height - Seated (Max): 0.018" (0.45mm)
Related Products
Stackpole Electronics Inc
RAVF104DJT3R60
Bourns Inc.
CAY16-240J4LF
CTS Resistor Products
77061391P
CAL-CHIP ELECTRONICS, INC.
CN34J113CT
Bourns Inc.

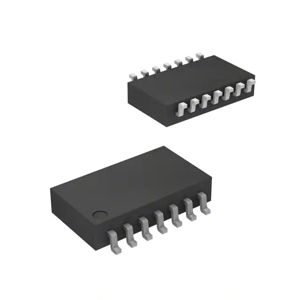

4814P-T02-221LF
YAGEO

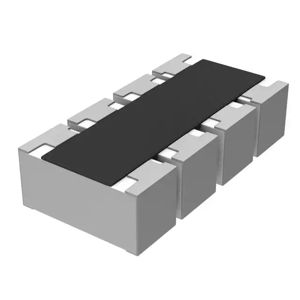

YC124-FR-0730RL
CTS Resistor Products
766141562GP
YAGEO

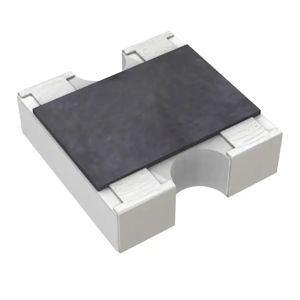

YC162-FR-07620RL
Stackpole Electronics Inc

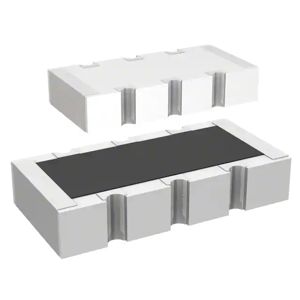

RAVF164DJT16K0
