CMT-8114-B
Triad Magnetics
Triad Magnetics
CMC 2.5MH 12.5A 2LN TH ESD
$5.86
Available to order
Reference Price (USD)
140+
$5.21186
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

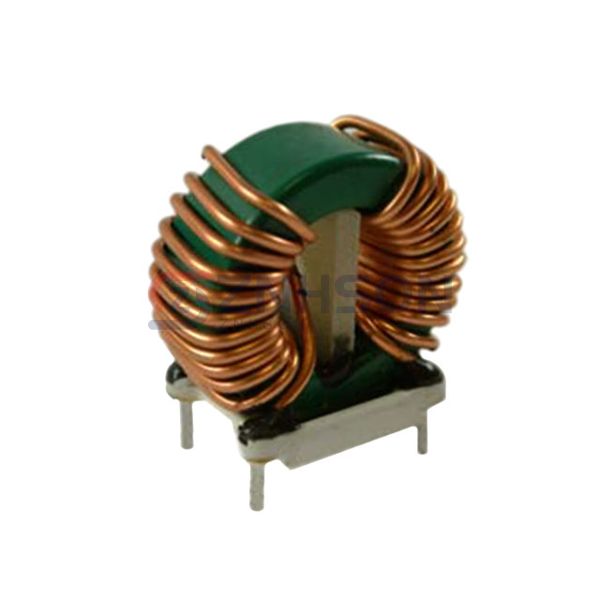

The Triad Magnetics CMT-8114-B Common Mode Choke is a top-tier solution in our Filters lineup, providing exceptional EMI filtering and signal integrity. Key features include high impedance, low insertion loss, and temperature stability. Applications include power converters, USB interfaces, and audio equipment. Ready to integrate this into your project? Send us your inquiry now!
Specifications
- Product Status: Active
- Filter Type: Power Line
- Number of Lines: 2
- Impedance @ Frequency: -
- Inductance @ Frequency: 2.5 mH @ 1 kHz
- Current Rating (Max): 12.5A
- DC Resistance (DCR) (Max): 11mOhm
- Voltage Rating - DC: -
- Voltage Rating - AC: 1500V (1.5kV)
- Operating Temperature: -55°C ~ 105°C
- Ratings: -
- Approval Agency: CSA, IEC, UL, VDE
- Features: ESD
- Mounting Type: Through Hole
- Size / Dimension: 1.450" L x 0.800" W (36.83mm x 20.32mm)
- Height (Max): 1.500" (38.10mm)
- Package / Case: Vertical, 4 PC Pin
