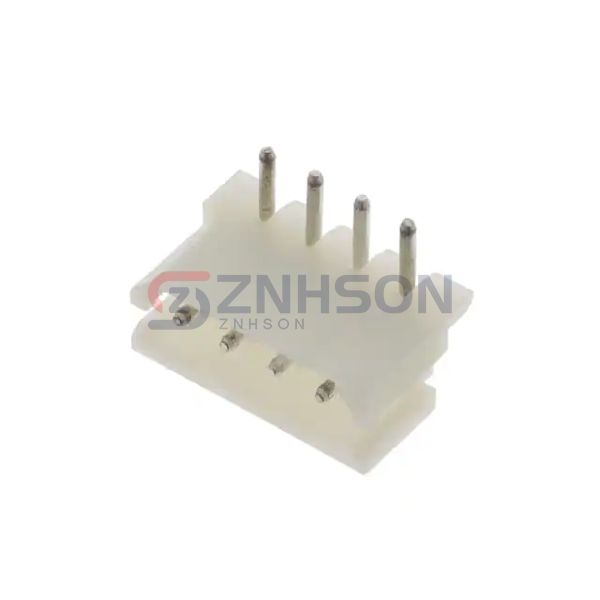

CI2504P1H00-NH
Cvilux USA
Cvilux USA
4 POS 2.50MM (.098) WIRE TO BOAR
$0.21
Available to order
Reference Price (USD)
1+
$0.21000
500+
$0.2079
1000+
$0.2058
1500+
$0.2037
2000+
$0.2016
2500+
$0.1995
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with CI2504P1H00-NH Cvilux USA Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.193" (4.90mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 50VAC
Related Products
TE Connectivity AMP Connectors
3-794636-8
Molex
0022286263
Samtec Inc.
HTSW-103-08-FM-D-RA

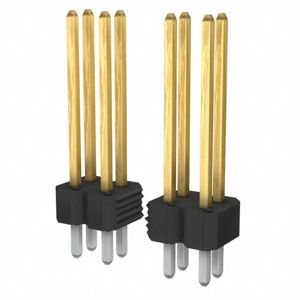

Amphenol ICC (FCI)
77313-119-22LF

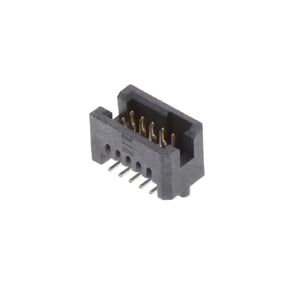

Samtec Inc.
TFC-105-22-F-D-A
Samtec Inc.
ZSS-117-02-T-D-615

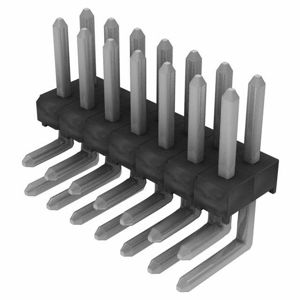

Samtec Inc.
TSW-107-08-T-D-RA

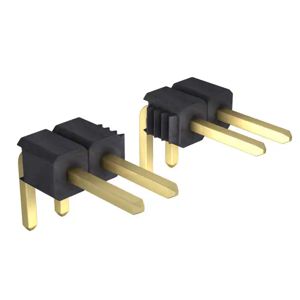

Preci-Dip
880-70-040-20-001101

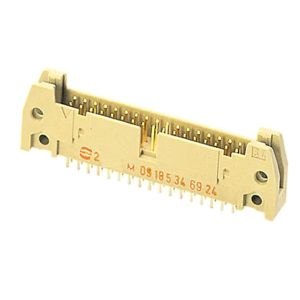

HARTING
