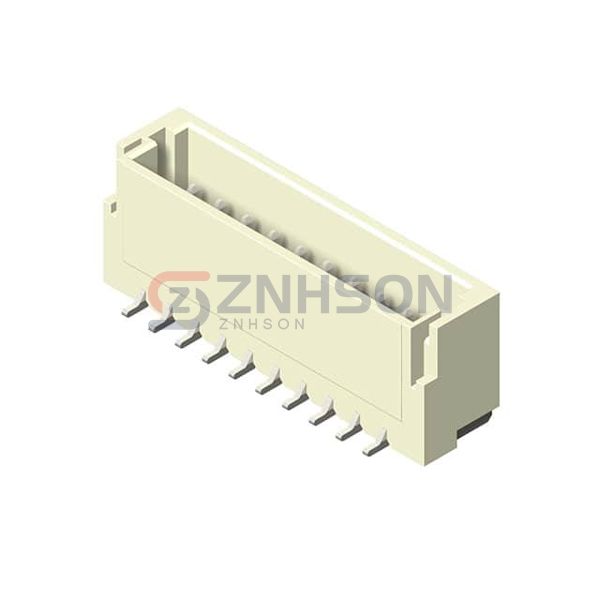

CI1102M1VR0-NH

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.039" (1.00mm)
• Number of Positions: 2
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Surface Mount
• Termination: Solder
• Fastening Type: Detent Lock
• Contact Length - Mating: 0.069" (1.75mm)
• Contact Length - Post: -
• Overall Contact Length: -
• Insulation Height: 0.169" (4.30mm)
• Contact Shape: Rectangular
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: 100.0µin (2.54µm)
• Contact Finish - Post: Tin
• Contact Material: Phosphor Bronze
• Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
• Features: Pick and Place, Solder Retention
• Operating Temperature: -25°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Natural
• Current Rating (Amps): 1A (AC/DC)
• Voltage Rating: 50VAC
