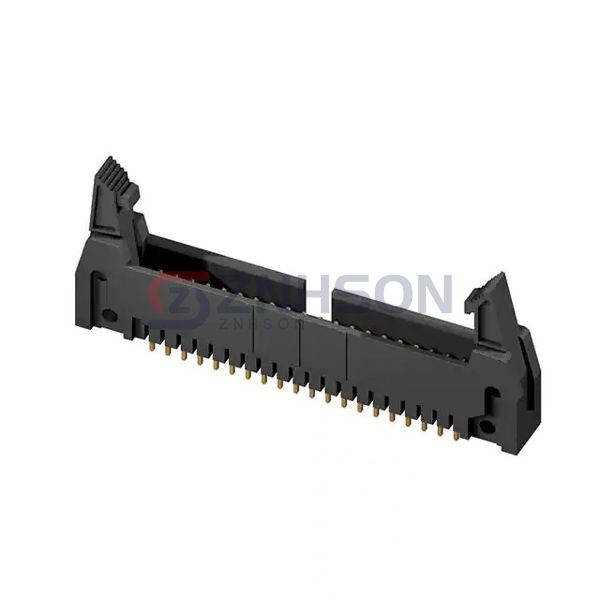

CH88142C100-B
Cvilux USA
Cvilux USA
2.54MM(.100) DUAL ROW BOARD MOUN
$0.33
Available to order
Reference Price (USD)
1+
$0.33091
500+
$0.3276009
1000+
$0.3242918
1500+
$0.3209827
2000+
$0.3176736
2500+
$0.3143645
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CH88142C100-B Cvilux USA Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Short
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.658" (16.71mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
