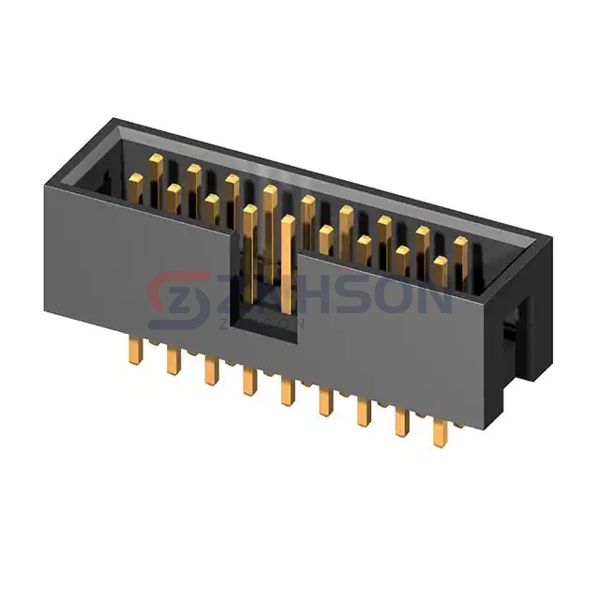

CH87142V201
Cvilux USA
Cvilux USA
2.54MM(.100) DUAL ROW BOARD STRA
$0.27
Available to order
Reference Price (USD)
1+
$0.27000
500+
$0.2673
1000+
$0.2646
1500+
$0.2619
2000+
$0.2592
2500+
$0.2565
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with CH87142V201 Cvilux USA Rectangular Connectors - Headers, Male Pins. These connectors provide excellent electrical performance, secure locking mechanisms, and space-saving designs. Suitable for industrial machinery, consumer electronics, and more. Ready to order? Send us your inquiry and we'll respond swiftly!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.110" (2.80mm)
- Overall Contact Length: -
- Insulation Height: 0.358" (9.09mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
