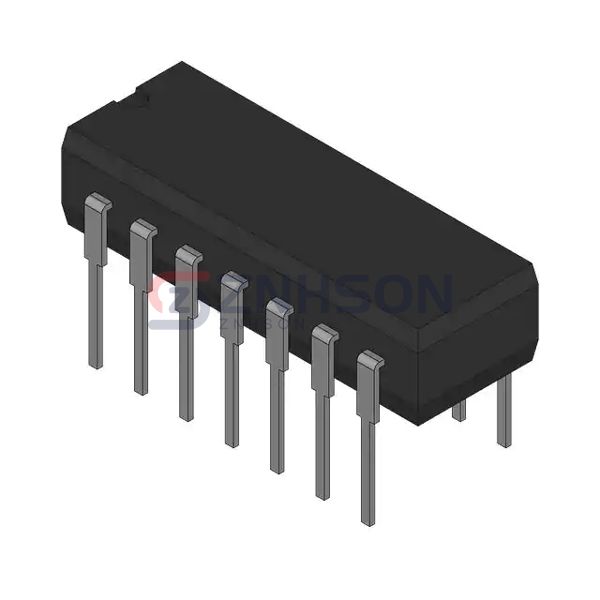

CD74HCT14EX

Harris Corporation
CD74HCT14EX Preview
Harris Corporation
IC INVERT SCHMITT 6CH 1-IN 14DIP
$0.22
Available to order
Reference Price (USD)
1+
$0.22000
500+
$0.2178
1000+
$0.2156
1500+
$0.2134
2000+
$0.2112
2500+
$0.209
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Logic Type: Inverter
  • Number of Circuits: 6
  • Number of Inputs: 1
  • Features: Schmitt Trigger
  • Voltage - Supply: 4.5V ~ 5.5V
  • Current - Quiescent (Max): 2 µA
  • Current - Output High, Low: 4mA, 4mA
  • Logic Level - Low: 0.5V ~ 0.6V
  • Logic Level - High: 1.9V ~ 2.1V
  • Max Propagation Delay @ V, Max CL: 38ns @ 4.5V, 50pF
  • Operating Temperature: -55°C ~ 125°C
  • Mounting Type: Through Hole
  • Supplier Device Package: 14-PDIP
  • Package / Case: 14-DIP (0.300", 7.62mm)

Related Products

Texas Instruments

SN74LVC06AQPWRG4Q1

Nexperia USA Inc.

74AHCT14PW-Q100,11

Texas Instruments

SN74S04NE4

Texas Instruments

SN74S260N

Texas Instruments

SNJ54ALS804AJ

National Semiconductor

74LS15PC

Texas Instruments

SN74HCS03PWR

Texas Instruments

SN74ALS05ADR

Rochester Electronics, LLC

54AC02/QCA

Nexperia USA Inc.

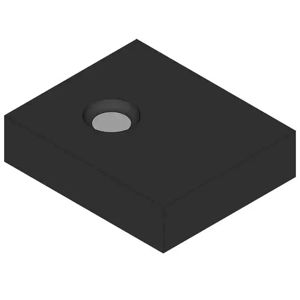

74LVC2G32GN,115
