CD54HC02F

Harris Corporation

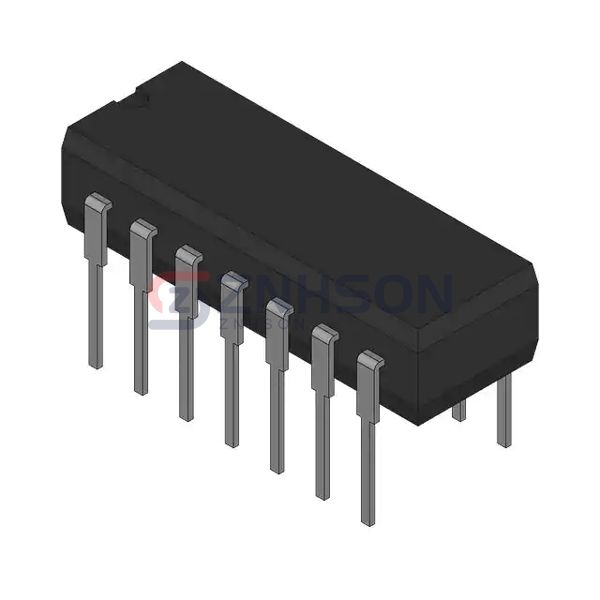

CD54HC02F Preview
Harris Corporation
NOR GATE, HC/UH SERIES
$10.08
Available to order
Reference Price (USD)
1+
$10.08000
500+
$9.9792
1000+
$9.8784
1500+
$9.7776
2000+
$9.6768
2500+
$9.576
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Logic Type: NOR Gate
  • Number of Circuits: 4
  • Number of Inputs: 2
  • Features: -
  • Voltage - Supply: 2V ~ 6V
  • Current - Quiescent (Max): 2 µA
  • Current - Output High, Low: 5.2mA, 5.2mA
  • Logic Level - Low: 0.5V ~ 1.8V
  • Logic Level - High: 1.5V ~ 4.2V
  • Max Propagation Delay @ V, Max CL: 15ns @ 6V, 50pF
  • Operating Temperature: -55°C ~ 125°C
  • Mounting Type: Through Hole
  • Supplier Device Package: 14-CDIP
  • Package / Case: 14-CDIP (0.300", 7.62mm)
