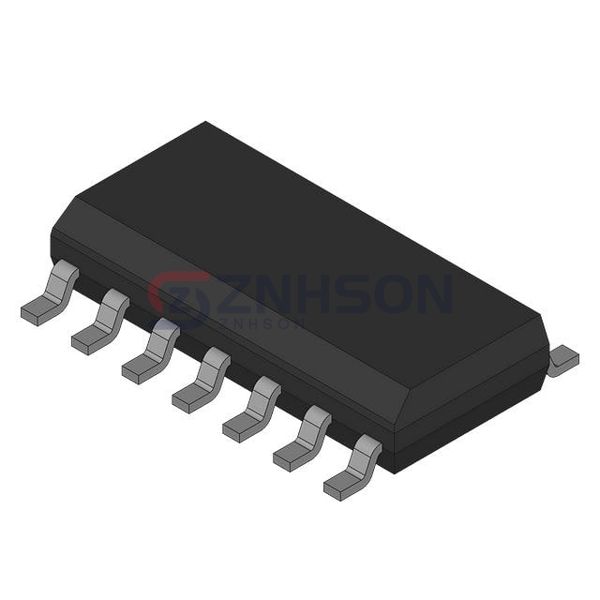

CD4013BCSJ
Fairchild Semiconductor
Fairchild Semiconductor
IC FF D-TYPE DUAL 1BIT 14SOP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your digital designs with CD4013BCSJ Logic Flip Flops by Fairchild Semiconductor. Featuring fast switching speeds, robust noise immunity, and compact packaging, these flip flops are perfect for use in registers, counters, and memory units. Suitable for industrial, automotive, and consumer electronics. Request a quote now to learn more about our solutions!
Specifications
- Product Status: Obsolete
- Function: Set(Preset) and Reset
- Type: D-Type
- Output Type: Complementary
- Number of Elements: 2
- Number of Bits per Element: 1
- Clock Frequency: 15.5 MHz
- Max Propagation Delay @ V, Max CL: 120ns @ 15V, 50pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 8.8mA, 8.8mA
- Voltage - Supply: 3V ~ 15V
- Current - Quiescent (Iq): 4 µA
- Input Capacitance: 5 pF
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOP
- Package / Case: 14-SOIC (0.209", 5.30mm Width)
