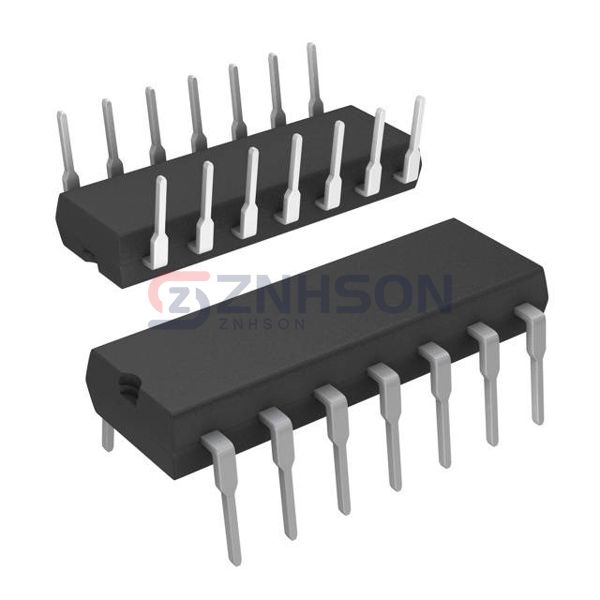

CD4013BCN
onsemi
onsemi
IC FF D-TYPE DUAL 1BIT 14DIP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
onsemi's CD4013BCN Logic Flip Flops set the standard for digital integration. Offering daisy-chain capability, power-down protection, and radiation-hardened variants, these ICs address complex timing challenges in defense and satellite systems. Partner with us for customized solutions - start your RFQ process now!
Specifications
- Product Status: Obsolete
- Function: Set(Preset) and Reset
- Type: D-Type
- Output Type: Complementary
- Number of Elements: 2
- Number of Bits per Element: 1
- Clock Frequency: 15.5 MHz
- Max Propagation Delay @ V, Max CL: 120ns @ 15V, 50pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 8.8mA, 8.8mA
- Voltage - Supply: 3V ~ 15V
- Current - Quiescent (Iq): 4 µA
- Input Capacitance: 5 pF
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Through Hole
- Supplier Device Package: 14-MDIP
- Package / Case: 14-DIP (0.300", 7.62mm)
