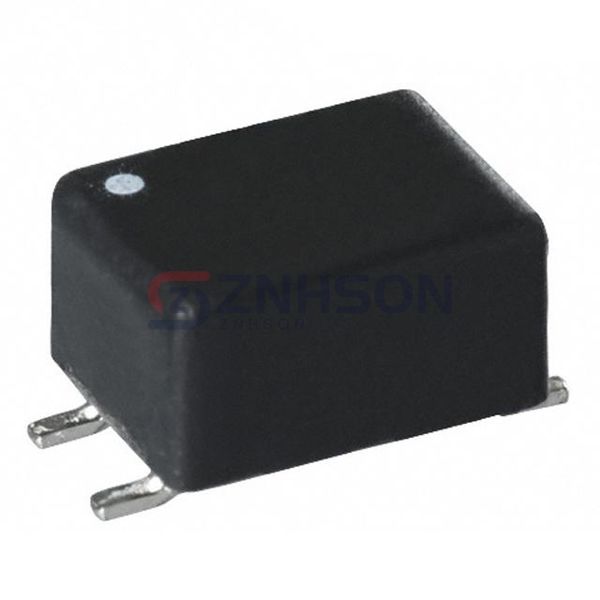

CC2824E105R-10
Laird-Signal Integrity Products
Laird-Signal Integrity Products
CMC 1MH 700MA 2LN 4.25KOHM SMD
$5.67
Available to order
Reference Price (USD)
1,500+
$3.48074
3,000+
$3.36624
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Laird-Signal Integrity Products CC2824E105R-10 Common Mode Choke is a top-tier solution in our Filters lineup, providing exceptional EMI filtering and signal integrity. Key features include high impedance, low insertion loss, and temperature stability. Applications include power converters, USB interfaces, and audio equipment. Ready to integrate this into your project? Send us your inquiry now!
Specifications
- Product Status: Active
- Filter Type: Signal Line
- Number of Lines: 2
- Impedance @ Frequency: 4.25 kOhms @ 7 MHz
- Inductance @ Frequency: 1 mH @ 100 kHz
- Current Rating (Max): 700mA
- DC Resistance (DCR) (Max): 260mOhm
- Voltage Rating - DC: 80V
- Voltage Rating - AC: 42V
- Operating Temperature: -40°C ~ 125°C
- Ratings: -
- Approval Agency: -
- Features: -
- Mounting Type: Surface Mount
- Size / Dimension: 0.354" L x 0.217" W (9.00mm x 5.50mm)
- Height (Max): 0.193" (4.90mm)
- Package / Case: Horizontal, 4 Flat Lead
Related Products
Schaffner EMC Inc.
RN214-0.5-02-39M
Bourns Inc.
SRF3216-222Y
COILCRAFT
0805USB-902MLC

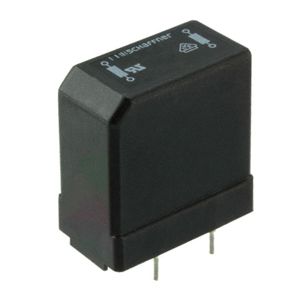

Schaffner EMC Inc.
RN232-4-02-3M3

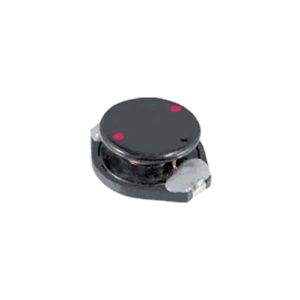

Central Technologies
CTDLW21S-670T04

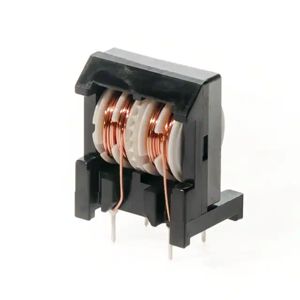

KEMET
SSHB21HS-R12220

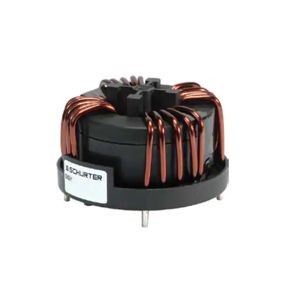

SCHURTER Inc.
DKIH-3458-120M-NK

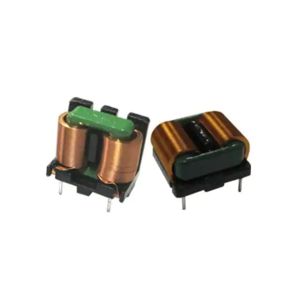

Central Technologies
CTSQ1515F-120-153-_

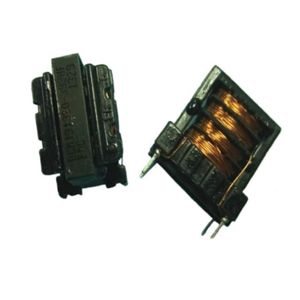

ITG Electronics, Inc.
