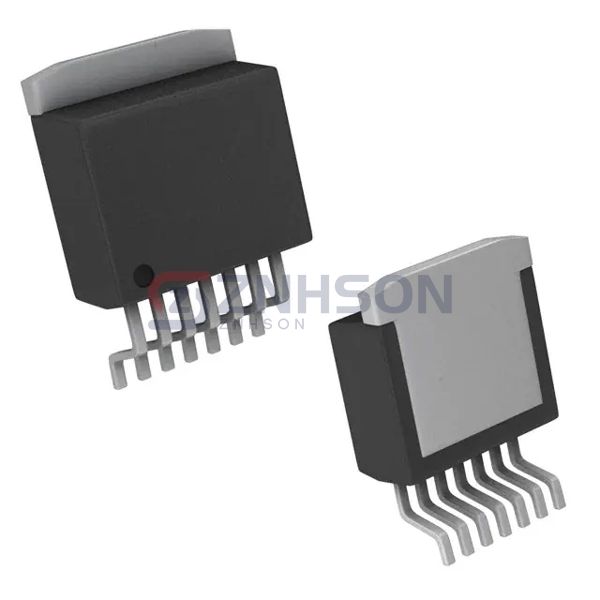

BTN7973BAUMA1
Infineon Technologies
Infineon Technologies
IC NOVALITHIC 1/2 BRIDGE TO263-7
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Infineon Technologies BTN7973BAUMA1 series offers versatile full/half-bridge driver solutions for modern power electronics. Featuring dual MOSFET gate drivers with independent inputs, these PMICs provide exceptional flexibility in motor control and switched-mode power supply designs. Advanced protection mechanisms include undervoltage lockout and thermal shutdown, while the high-current drive capability ensures efficient switching of power transistors. Suitable for industrial, automotive, and consumer applications. Request technical documentation or samples through our quick inquiry form.
Specifications
- Product Status: Obsolete
- Output Configuration: Half Bridge
- Applications: DC Motors, General Purpose
- Interface: Logic
- Load Type: Inductive
- Technology: DMOS
- Rds On (Typ): 9mOhm LS, 7mOhm HS
- Current - Output / Channel: 44A
- Current - Peak Output: 90A
- Voltage - Supply: 4.5V ~ 28V
- Voltage - Load: 4.5V ~ 28V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: Latch Function, Slew Rate Controlled, Status Flag
- Fault Protection: Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
- Mounting Type: Surface Mount
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
- Supplier Device Package: PG-TO263-7-1
