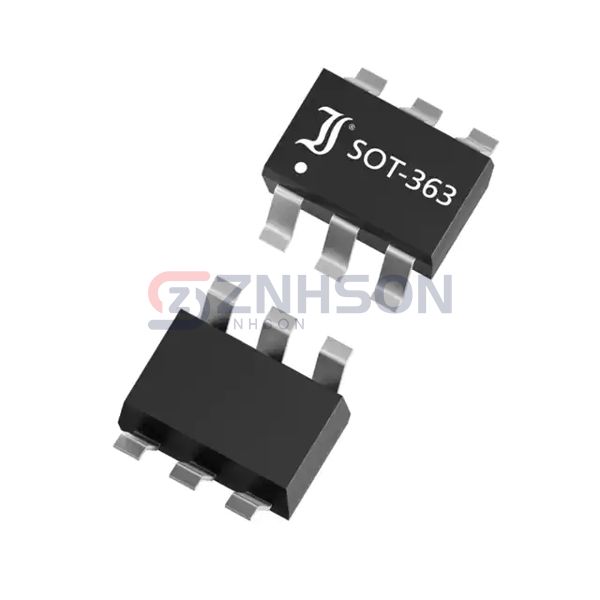

BCR22PN
Diotec Semiconductor
Diotec Semiconductor
DIGITAL TR SOT-363 60V 100MA
$0.05
Available to order
Reference Price (USD)
1+
$0.04770
500+
$0.047223
1000+
$0.046746
1500+
$0.046269
2000+
$0.045792
2500+
$0.045315
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience precision engineering with Diotec Semiconductor's BCR22PN Bipolar Junction Transistor Arrays, the optimal solution for space-efficient designs. These pre-biased components eliminate external resistor needs while providing predictable performance in amplification and switching roles. Application sectors include automotive electronics, power tools, and renewable energy systems where reliability is paramount. The product family offers multiple configuration options, all featuring low quiescent current, high gain bandwidth product, and robust EMC performance. Diotec Semiconductor provides comprehensive technical resources for BCR22PN integration. Take the next step request a quote or design consultation through our convenient inquiry portal!
Specifications
- Product Status: Active
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 60V
- Resistor - Base (R1): 22kOhms
- Resistor - Emitter Base (R2): 22kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 70 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 100nA (ICBO)
- Frequency - Transition: 170MHz
- Power - Max: 250mW
- Mounting Type: Surface Mount
- Package / Case: 6-VSSOP, SC-88, SOT-363
- Supplier Device Package: SOT-363
