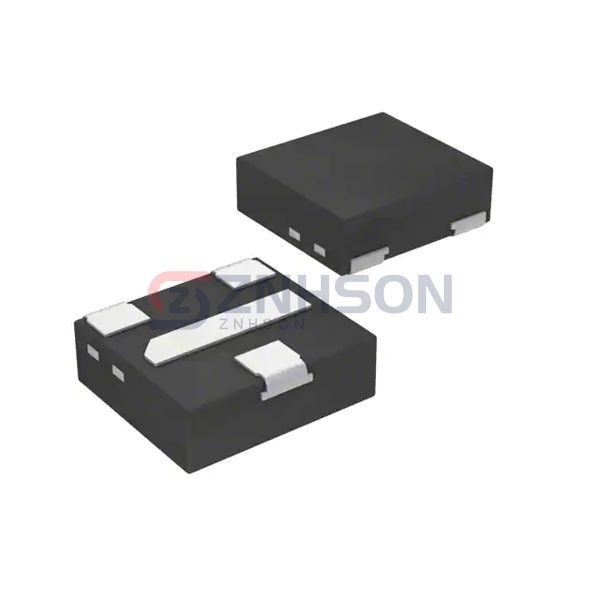

BAW56QAZ
Nexperia USA Inc.
Nexperia USA Inc.
DIODE HS SW 90V 180MA SOT1215
$0.30
Available to order
Reference Price (USD)
5,000+
$0.03960
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with the BAW56QAZ from Nexperia USA Inc., a leading product in the Diodes - Rectifiers - Arrays category of Discrete Semiconductor Products. These diodes provide exceptional rectification and array performance, backed by advanced technology and rigorous testing. The BAW56QAZ is known for its high efficiency, low power dissipation, and long service life. Nexperia USA Inc. guarantees quality and reliability in every component. Contact us today to learn more and place your order!
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 90 V
- Current - Average Rectified (Io) (per Diode): 180mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 500 nA @ 80 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: 3-XDFN Exposed Pad
- Supplier Device Package: DFN1010D-3
