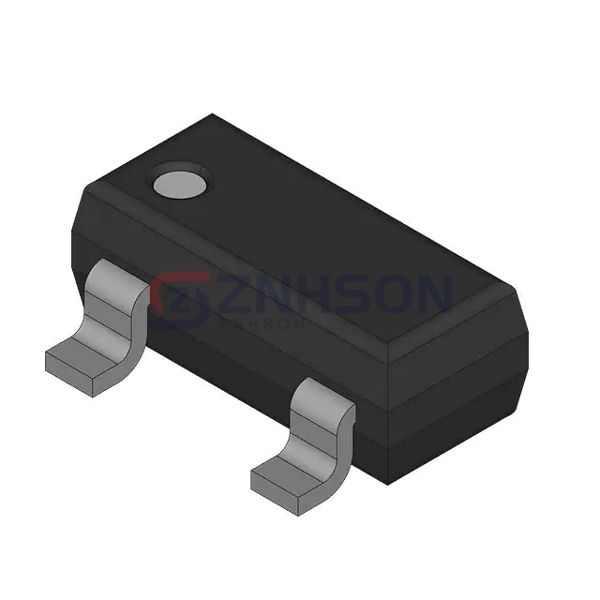

BAW56
Fairchild Semiconductor
Fairchild Semiconductor
HIGH-SPEED SWITCHING DIODES
$0.03
Available to order
Reference Price (USD)
1+
$0.03000
500+
$0.0297
1000+
$0.0294
1500+
$0.0291
2000+
$0.0288
2500+
$0.0285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality BAW56 from Fairchild Semiconductor, a leading solution in the Discrete Semiconductor Products category, specifically designed for Diodes - Rectifiers - Arrays applications. Our products are engineered for reliability and efficiency, making them ideal for various industrial and commercial uses. The BAW56 features excellent performance in rectification and array configurations, ensuring stable and consistent operation. Whether you need components for power supplies, converters, or other electronic devices, Fairchild Semiconductor's diodes are the perfect choice. Contact us today for more details and to request a quote!
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 85 V
- Current - Average Rectified (Io) (per Diode): 200mA
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 6 ns
- Current - Reverse Leakage @ Vr: 2.5 µA @ 70 V
- Operating Temperature - Junction: 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
