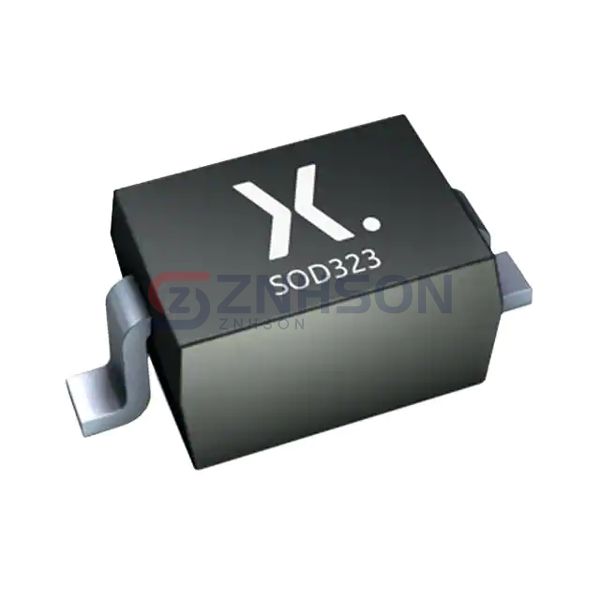

BAT760/6Z
Nexperia USA Inc.
Nexperia USA Inc.
DIODE SCHOTTKY 20V 1A SOD323
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your power management systems with BAT760/6Z Single Rectifier Diodes by Nexperia USA Inc.. These diodes are crafted for optimal performance in AC/DC conversion, ensuring smooth and efficient operation. Ideal for use in power adapters, LED drivers, and motor controls, they feature high current capacity, low VF, and excellent thermal stability. Nexperia USA Inc.'s commitment to quality means you get dependable components every time. Interested? Get in touch for pricing and availability!
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 1A (DC)
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 50 µA @ 15 V
- Capacitance @ Vr, F: 19pF @ 5V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
- Operating Temperature - Junction: 125°C
