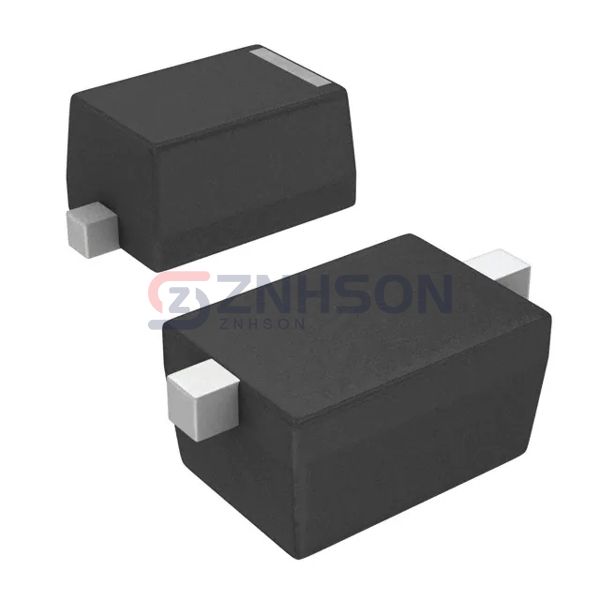

BAT54XV2
onsemi
onsemi
DIODE SCHOTTKY 30V 200MA SOD523F
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your circuitry with onsemi's BAT54XV2 Single Rectifier Diodes, tailored for seamless integration and high reliability. These diodes excel in applications such as voltage clamping, freewheeling, and reverse polarity protection. With features like high surge withstand capacity and low thermal resistance, they are a must-have for any electronics engineer. onsemi guarantees top-tier quality and performance. Ready to take the next step? Reach out for a detailed consultation!
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 200mA
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Capacitance @ Vr, F: 10pF @ 1V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523F
- Supplier Device Package: SOD-523F
- Operating Temperature - Junction: 125°C (Max)
