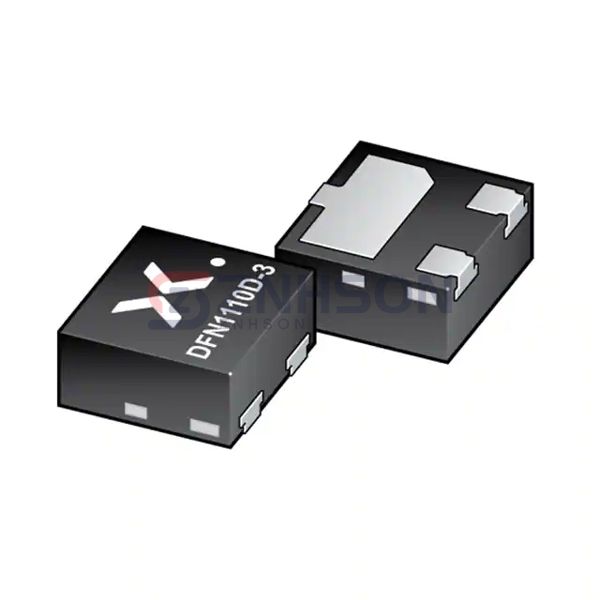

BAT54QBZ
Nexperia USA Inc.
Nexperia USA Inc.
DIODE SCHOTTKY 30V 200MA 3DFN
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your circuitry with Nexperia USA Inc.'s BAT54QBZ Single Rectifier Diodes, tailored for seamless integration and high reliability. These diodes excel in applications such as voltage clamping, freewheeling, and reverse polarity protection. With features like high surge withstand capacity and low thermal resistance, they are a must-have for any electronics engineer. Nexperia USA Inc. guarantees top-tier quality and performance. Ready to take the next step? Reach out for a detailed consultation!
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Capacitance @ Vr, F: 10pF @ 1V, 1MHz
- Mounting Type: Surface Mount, Wettable Flank
- Package / Case: 3-XDFN Exposed Pad
- Supplier Device Package: DFN1110D-3
- Operating Temperature - Junction: 150°C
