B65805J0000R049
EPCOS - TDK Electronics
EPCOS - TDK Electronics

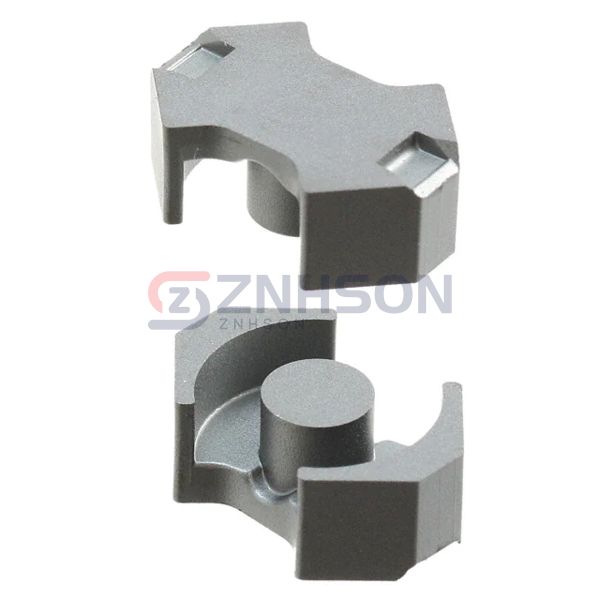

FERRITE CORE RM 1.3UH N49 2PCS
$3.48
Available to order
Reference Price (USD)
1+
$2.51000
10+
$2.16500
25+
$1.64560
50+
$1.55900
100+
$1.38580
250+
$1.29916
500+
$1.21254
1,000+
$1.11294
5,000+
$1.08263
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your circuit designs with EPCOS - TDK Electronics B65805J0000R049 Ferrite Cores, renowned for their high permeability and minimal energy dissipation. These cores are pivotal in creating efficient transformers, inductors, and chokes for various industries. Their robust performance in high-frequency applications makes them ideal for telecommunications and power electronics. Don't miss out on top-tier quality contact us now for pricing and availability details!
Specifications
- Product Status: Active
- Core Type: RM
- Supplier Device Package: RM 5
- Material: N49
- Diameter: -
- Inductance Factor (Al): 1.3 µH
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 960
- Initial Permeability (µi): 1500
- Core Factor (ΣI/A) mm-1: 0.93
- Effective Length (le) mm: 22.1
- Effective Area (Ae) mm²: 23.8
- Minimum Core Cross Section (Amin) mm²: 18
- Effective Magnetic Volume (Ve) mm³: 526
- Finish: Uncoated
- Height: 0.207" (5.25mm)
- Length: 0.575" (14.60mm)
- Width: 0.268" (6.80mm)
