B65525J0000R097
EPCOS - TDK Electronics
EPCOS - TDK Electronics

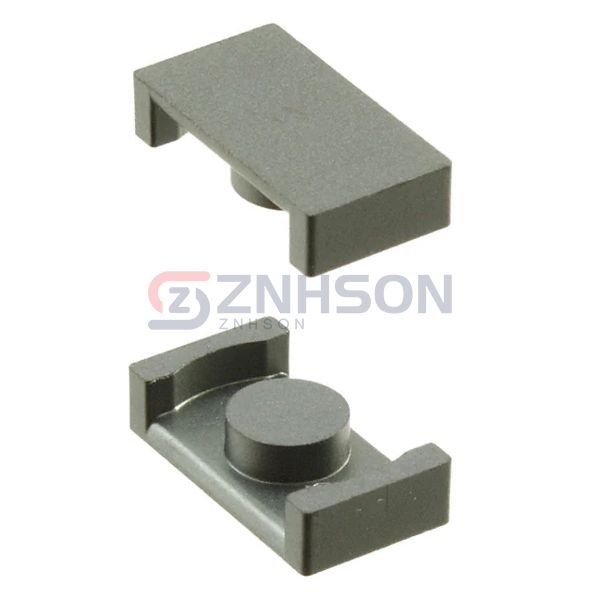

FERRITE CORE ER 1.2UH N97 2PCS
$2.13
Available to order
Reference Price (USD)
1+
$1.48000
10+
$1.27700
25+
$0.97040
50+
$0.91940
100+
$0.81730
250+
$0.76620
500+
$0.71512
1,000+
$0.65638
5,000+
$0.63850
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium EPCOS - TDK Electronics B65525J0000R097 Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: ER
- Supplier Device Package: ER 11 x 5
- Material: N97
- Diameter: -
- Inductance Factor (Al): 1.2 µH
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 1086
- Initial Permeability (µi): 2300
- Core Factor (ΣI/A) mm-1: 1.1
- Effective Length (le) mm: 14.1
- Effective Area (Ae) mm²: 12.4
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 174
- Finish: Uncoated
- Height: 0.098" (2.50mm)
- Length: 0.433" (11.00mm)
- Width: 0.236" (6.00mm)
Related Products
EPCOS - TDK Electronics
B64290P0037X065
Ferroxcube
PQ35/20-3C95
EPCOS - TDK Electronics
B66335Q0400K187
EPCOS - TDK Electronics
B64290L0082X038
Ferroxcube
TX80/40/15-3E10-M
EPCOS - TDK Electronics
B65501D0000R033
Ferroxcube
TX25/15/10-3C94
EPCOS - TDK Electronics
B66371Q0400K187
EPCOS - TDK Electronics

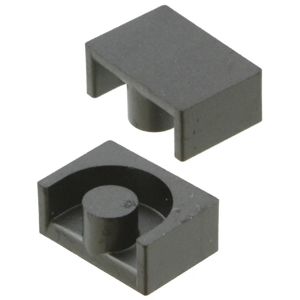

B65839A0000R030
