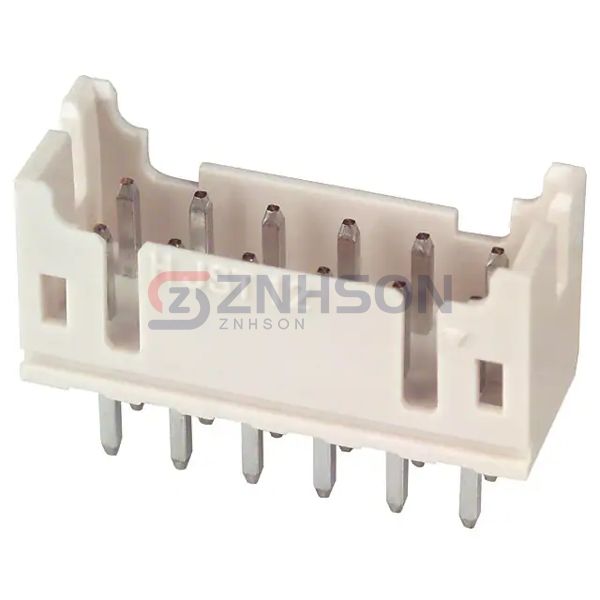

B12B-PHDSS(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER VERT 12POS 2MM
$0.53
Available to order
Reference Price (USD)
1+
$0.50000
10+
$0.47300
100+
$0.36290
500+
$0.31558
1,000+
$0.26036
5,000+
$0.22880
10,000+
$0.21302
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The B12B-PHDSS(LF)(SN) JST Sales America Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.114" (2.90mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.291" (7.40mm)
- Insulation Height: 0.256" (6.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250V
Related Products
Hirose Electric Co Ltd
DF13A-3P-1.25H(21)
Samtec Inc.
FTSH-104-01-FM-DV
Amphenol ICC (FCI)
86837-406HLF
TE Connectivity AMP Connectors
1-825440-7
Adam Tech
MHR-26-HUAL
Samtec Inc.
TMMH-120-06-G-D
Samtec Inc.
TSM-107-02-S-DV-A-006-P-TR
TE Connectivity AMP Connectors
2842138-4
Samtec Inc.

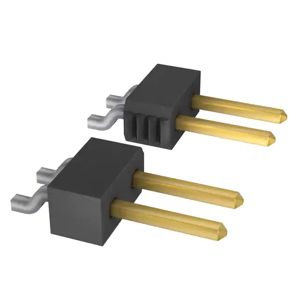

TSM-108-01-S-SH-TR
