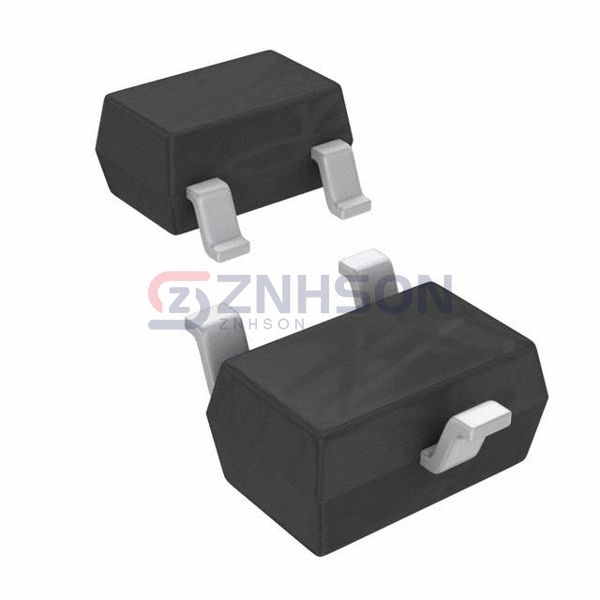

AZ23C5V6W-7-F
Diodes Incorporated
Diodes Incorporated
DIODE ZENER ARRAY 5.6V SOT323
$0.10
Available to order
Reference Price (USD)
3,000+
$0.10000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your circuit protection with Diodes Incorporated's AZ23C5V6W-7-F Zener Diode Arrays, offering multiple protection channels in compact formats. These diodes feature precise trigger voltages, fast response to transients, and long-term stability. Ideal applications include USB port protection, board-level voltage regulation, and automotive ECU designs. As a trusted name in discrete semiconductors, Diodes Incorporated ensures top-tier quality. Need technical support or volume pricing? Submit your inquiry and we'll respond promptly.
Specifications
- Product Status: Active
- Configuration: 1 Pair Common Anode
- Voltage - Zener (Nom) (Vz): 5.6 V
- Tolerance: ±5%
- Power - Max: 200 mW
- Impedance (Max) (Zzt): 40 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 2 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323
