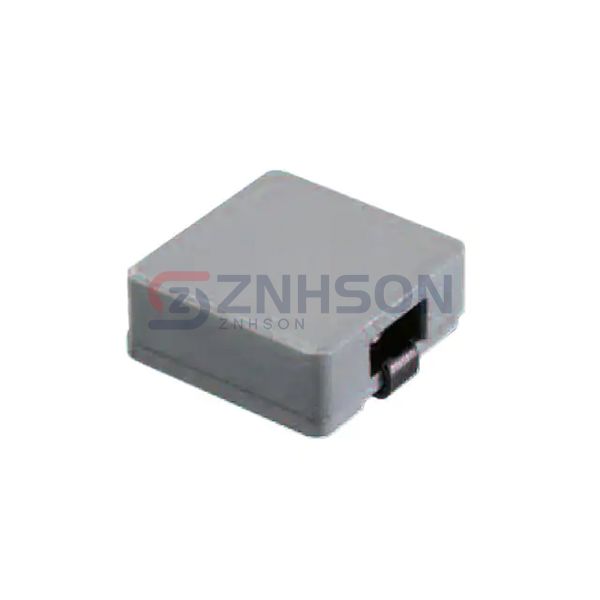

AX02-301R5
Triad Magnetics
Triad Magnetics
FIXED IND 1.5UH 18A 2.3 MOHM SMD
$1.07
Available to order
Reference Price (USD)
480+
$1.07263
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your circuit efficiency with AX02-301R5 Fixed Inductors from Triad Magnetics, a trusted name in electronic components. Designed with high-frequency capabilities, minimal eddy current losses, and excellent shielding, these inductors are perfect for wireless charging, LED lighting, and automation systems. AX02-301R5 ensures peak performance. Looking for tailored solutions? Contact us for expert advice!
Specifications
- Product Status: Active
- Type: Drum Core, Wirewound
- Material - Core: Ferrite
- Inductance: 1.5 µH
- Tolerance: ±20%
- Current Rating (Amps): 18 A
- Current - Saturation (Isat): 30A
- Shielding: Shielded
- DC Resistance (DCR): 2.3mOhm Max
- Q @ Freq: -
- Frequency - Self Resonant: -
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Inductance Frequency - Test: 100 kHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 2-SMD, J-Lead
- Supplier Device Package: SMD
- Size / Dimension: 0.524" L x 0.591" W (13.30mm x 15.00mm)
- Height - Seated (Max): 0.256" (6.50mm)
