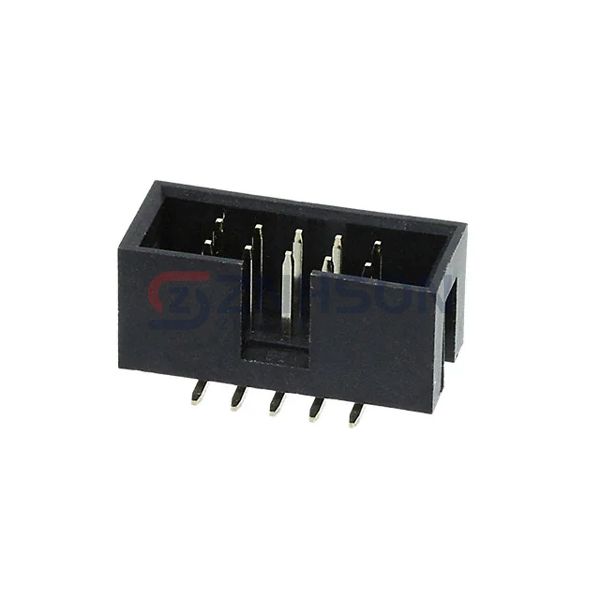

AWHW 10G-SMD
Assmann WSW Components
Assmann WSW Components
CONN HEADER SMD 10POS 2.54MM
$1.32
Available to order
Reference Price (USD)
1+
$1.25000
28+
$1.03679
112+
$0.95036
504+
$0.77760
1,008+
$0.69120
5,012+
$0.60480
10,024+
$0.57456
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with AWHW 10G-SMD Assmann WSW Components Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.232" (5.90mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.354" (9.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T, Glass Filled
- Features: Keying Slot, Pick and Place
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
