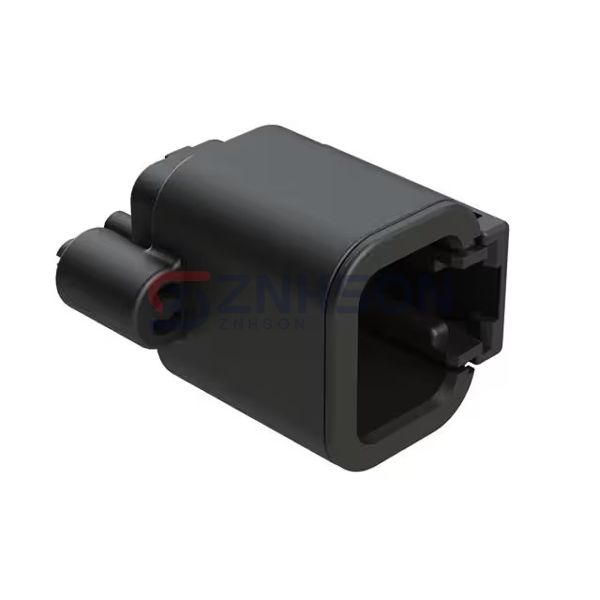

ATP04-2P-BM04

Specifications

• Product Status: Active
• Connector Type: Receptacle
• Contact Type: Male Pin
• Pitch - Mating: 0.264" (6.70mm)
• Number of Positions: 2
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Latch Holder
• Contact Length - Mating: -
• Contact Length - Post: 0.146" (3.70mm)
• Overall Contact Length: -
• Insulation Height: 1.126" (28.60mm)
• Contact Shape: Circular
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: -
• Contact Finish - Post: Tin
• Contact Material: Copper Alloy
• Insulation Material: Thermoplastic
• Features: Board Guide, Board Lock, Potting Wall, Sealed
• Operating Temperature: -55°C ~ 125°C
• Ingress Protection: IP68/IP69K - Dust Tight, Water Resistant, Waterproof
• Material Flammability Rating: -
• Insulation Color: Black
• Current Rating (Amps): 25A
• Voltage Rating: -
