APTGT150H120G
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 220A 690W SP6
$313.87
Available to order
Reference Price (USD)
100+
$152.03920
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your energy efficiency with Microchip Technology's APTGT150H120G IGBT Module. This module offers excellent thermal conductivity and minimal power loss, ideal for HVAC systems, robotics, and power converters. Experience the reliability of Microchip Technology inquire today about bulk order discounts.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Full Bridge Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 220 A
- Power - Max: 690 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 150A
- Current - Collector Cutoff (Max): 350 µA
- Input Capacitance (Cies) @ Vce: 10.7 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP6
- Supplier Device Package: SP6
Related Products
Infineon Technologies
BSM35GP120GBOSA1
Littelfuse Inc.
MG12450WB-BN2MM
Microchip Technology
APTGF350A60G
Powerex Inc.
CM400HX-24A
IXYS
IXGM40N60A
Infineon Technologies

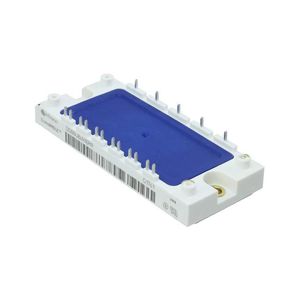

DDB6U84N16RRBOSA1
Infineon Technologies

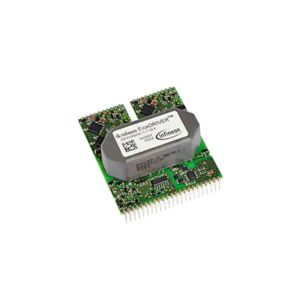

6PS04512E43W39693NOSA1
Microsemi Corporation

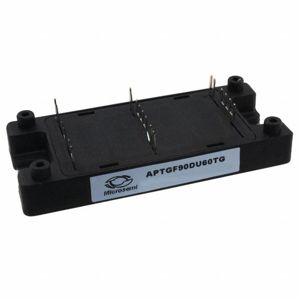

APTGF90DU60TG
