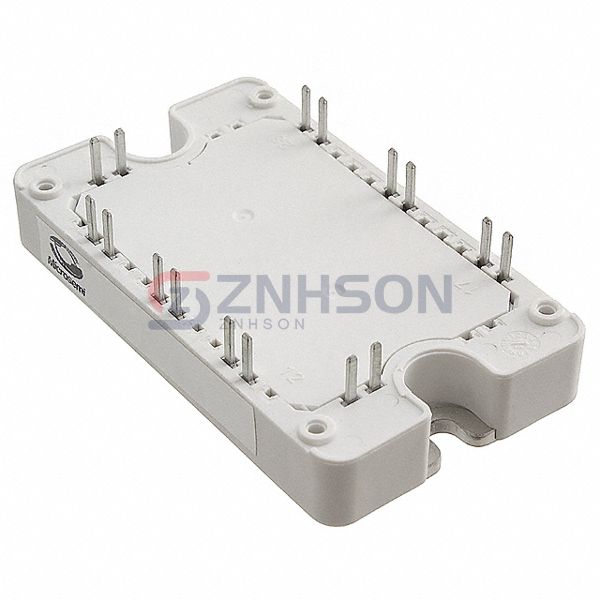

APTGT100BB60T3G
Microchip Technology
Microchip Technology
IGBT MODULE 600V 150A 340W SP3
$81.13
Available to order
Reference Price (USD)
100+
$44.22480
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTGT100BB60T3G from Microchip Technology sets the standard in IGBT Modules with its compact design and high power density. Ideal for servo drives and plasma cutting, it combines fast switching with low conduction losses. Partner with Microchip Technology for top-tier semiconductor solutions. Get in touch for details!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 150 A
- Power - Max: 340 W
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 100A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 6.1 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: SP3
- Supplier Device Package: SP3
