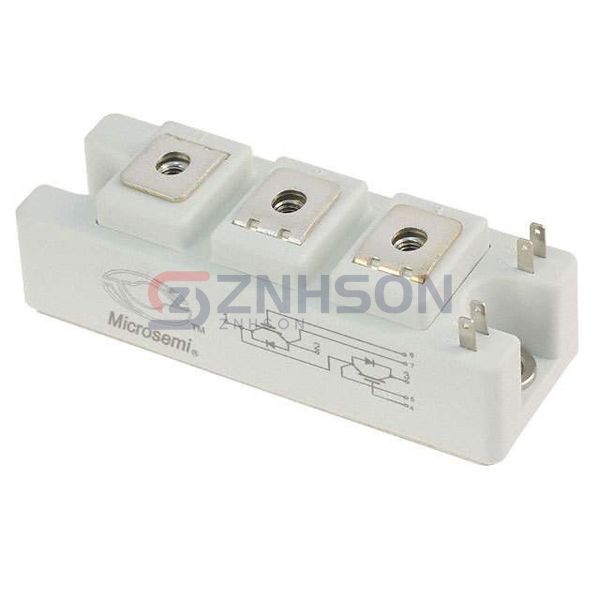

APTGT100A120D1G
Microsemi Corporation
Microsemi Corporation
IGBT MODULE 1200V 150A 520W D1
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTGT100A120D1G from Microsemi Corporation sets the standard in IGBT Modules with its compact design and high power density. Ideal for servo drives and plasma cutting, it combines fast switching with low conduction losses. Partner with Microsemi Corporation for top-tier semiconductor solutions. Get in touch for details!
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 150 A
- Power - Max: 520 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 100A
- Current - Collector Cutoff (Max): 3 mA
- Input Capacitance (Cies) @ Vce: 7 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: D1
- Supplier Device Package: D1
Related Products
Vishay General Semiconductor - Diodes Division
GA200SA60S
Infineon Technologies
FZ30R07W1E3B31ABOMA1
Infineon Technologies
FS900R08A2P2B31BOSA1
Microchip Technology
APTGF90A60T1G
Microsemi Corporation
APTGF50VDA120T3G
Infineon Technologies
FP25R12KT4B11BOSA1
Microchip Technology
APT50GT120JU2
Microsemi Corporation

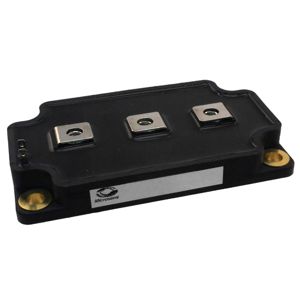

APTGF350DA60G
Vishay General Semiconductor - Diodes Division

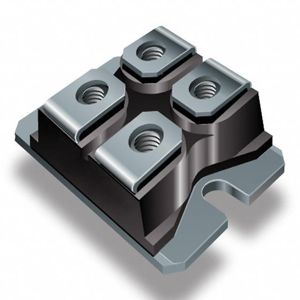

VS-GB75SA120UP
