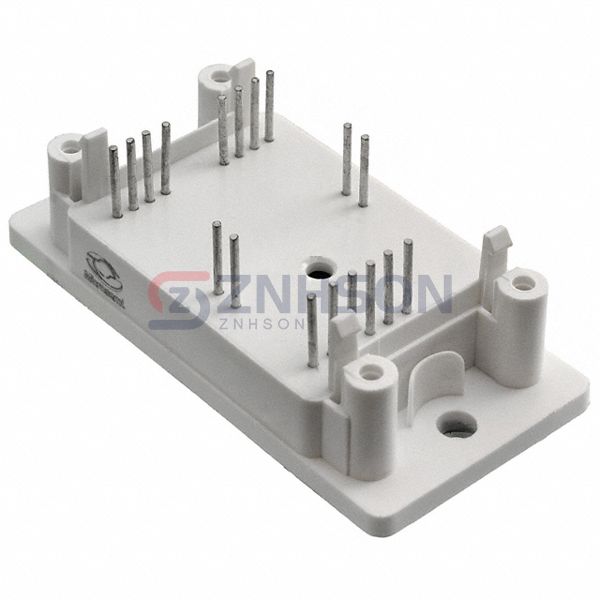

APTGF100A1202G
Microsemi Corporation
Microsemi Corporation
IGBT MODULE 1200V 135A 568W SP2
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance APTGF100A1202G IGBT Modules from Microsemi Corporation, designed for robust power management in industrial applications. These modules feature advanced thermal management, high voltage tolerance, and efficient switching capabilities, making them ideal for motor drives, renewable energy systems, and power supplies. Upgrade your systems with reliable Microsemi Corporation technology. Contact us today for a quote!
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 135 A
- Power - Max: 568 W
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 100A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 6.5 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP2
- Supplier Device Package: SP2
