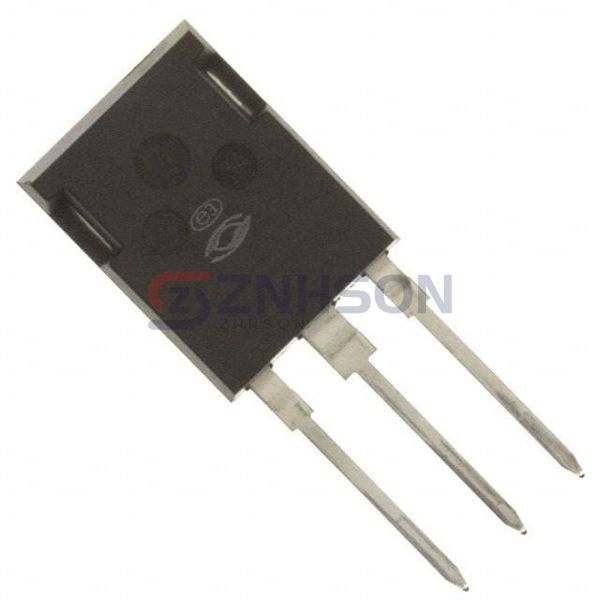

APT50GF120B2RG
Microchip Technology
Microchip Technology
IGBT 1200V 135A 781W TMAX
$21.27
Available to order
Reference Price (USD)
30+
$18.98133
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize energy efficiency with APT50GF120B2RG Single IGBTs by Microchip Technology, a trusted name in discrete semiconductors. Suitable for solar inverters, motor controllers, and more, these transistors feature low conduction loss and high switching frequency. Their robust design ensures long-term performance even in harsh environments. Choose APT50GF120B2RG for your next project and experience the Microchip Technology difference. Submit your inquiry today for expert assistance!
Specifications
- Product Status: Active
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 135 A
- Current - Collector Pulsed (Icm): 150 A
- Vce(on) (Max) @ Vge, Ic: 3V @ 15V, 50A
- Power - Max: 781 W
- Switching Energy: 3.6mJ (on), 2.64mJ (off)
- Input Type: Standard
- Gate Charge: 340 nC
- Td (on/off) @ 25°C: 25ns/260ns
- Test Condition: 800V, 50A, 1Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: -
