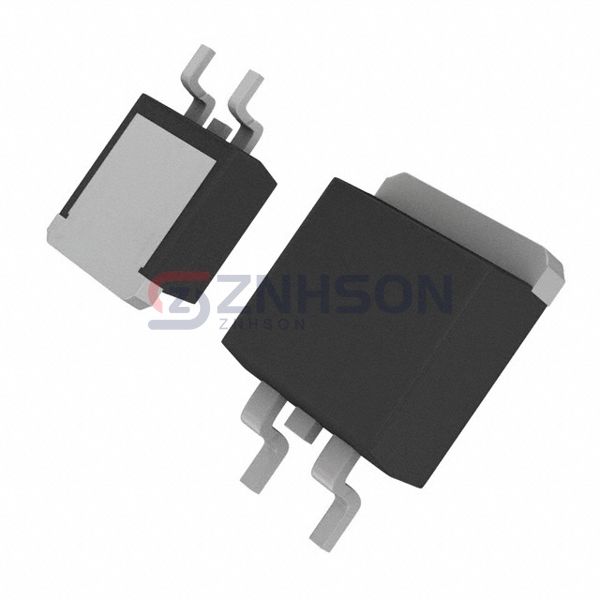

APT40GR120S
Microchip Technology
Microchip Technology
IGBT 1200V 88A 500W D3PAK
$8.48
Available to order
Reference Price (USD)
63+
$8.80413
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose APT40GR120S Single IGBTs by Microchip Technology for superior power handling in demanding environments. From railway systems to industrial drives, these transistors excel with features like avalanche ruggedness and integrated diodes. Their modular design simplifies installation and maintenance. Microchip Technology's reputation for quality makes APT40GR120S a smart investment. Email us now for datasheets and volume discounts!
Specifications
- Product Status: Active
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 88 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 3.2V @ 15V, 40A
- Power - Max: 500 W
- Switching Energy: 1.38mJ (on), 906µJ (off)
- Input Type: Standard
- Gate Charge: 210 nC
- Td (on/off) @ 25°C: 22ns/163ns
- Test Condition: 600V, 40A, 4.3Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D3Pak
