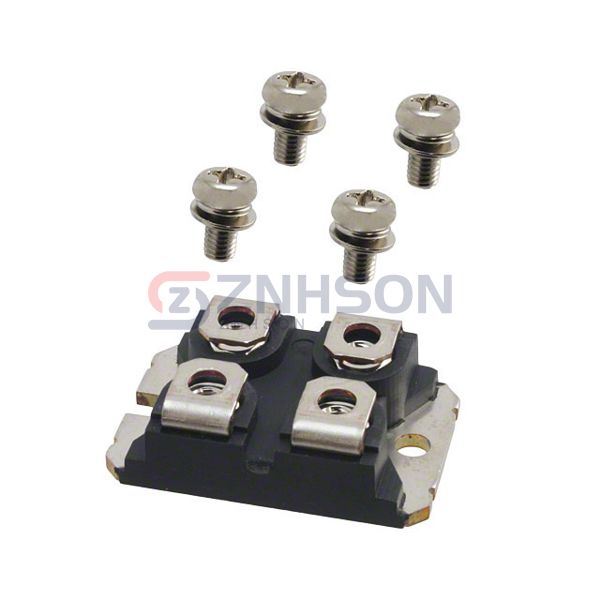

APT22F100J
Microchip Technology
Microchip Technology
MOSFET N-CH 1000V 23A ISOTOP
$37.18
Available to order
Reference Price (USD)
15+
$33.19200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with APT22F100J, a premium Transistors - FETs, MOSFETs - Single from Microchip Technology. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust APT22F100J for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1000 V
- Current - Continuous Drain (Id) @ 25°C: 23A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 380mOhm @ 18A, 10V
- Vgs(th) (Max) @ Id: -
- Gate Charge (Qg) (Max) @ Vgs: 305 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 9835 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 545W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: ISOTOP®
- Package / Case: SOT-227-4, miniBLOC
Related Products
Rohm Semiconductor
US5U2TR
onsemi
NTR3C21NZT3G
Microchip Technology
MIC94050YM4-TR
Alpha & Omega Semiconductor Inc.
AOTF292L
onsemi
NTMS4503NR2G
Infineon Technologies
BSP320SH6327XTSA1
NXP USA Inc.

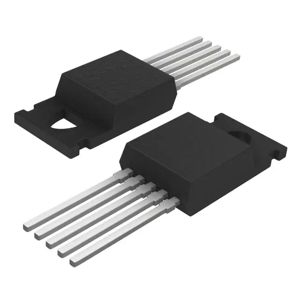

BUK9907-55ATE,127
Alpha & Omega Semiconductor Inc.
AOD66923
Infineon Technologies

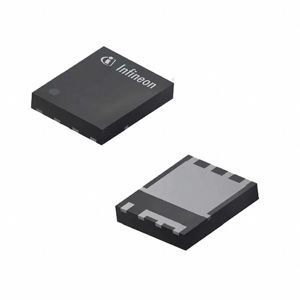

BSC027N10NS5ATMA1
