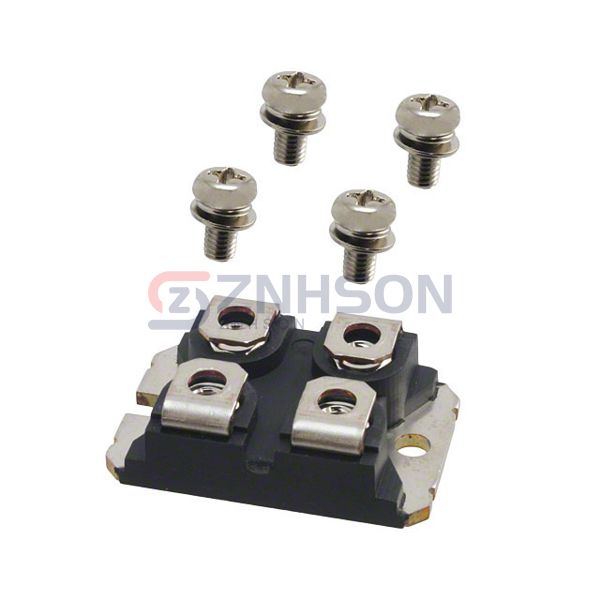

APT20M120JCU2
Microchip Technology
Microchip Technology
MOSFET N-CH 1200V 20A SOT227
$40.53
Available to order
Reference Price (USD)
1+
$40.53440
500+
$40.129056
1000+
$39.723712
1500+
$39.318368
2000+
$38.913024
2500+
$38.50768
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with APT20M120JCU2, a premium Transistors - FETs, MOSFETs - Single from Microchip Technology. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust APT20M120JCU2 for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 672mOhm @ 14A, 10V
- Vgs(th) (Max) @ Id: 5V @ 2.5mA
- Gate Charge (Qg) (Max) @ Vgs: 300 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 7736 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 543W (Tc)
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: SOT-227
- Package / Case: SOT-227-4, miniBLOC
