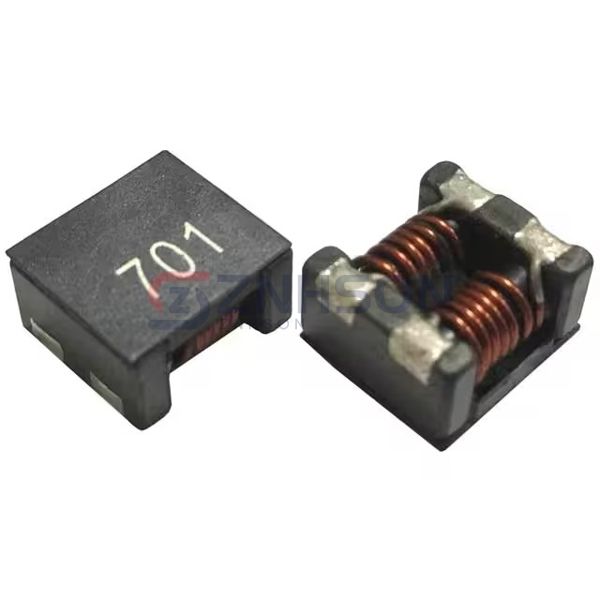

APPM00121165800XY0
Chilisin Electronics
Chilisin Electronics
CHOKE CMC WW
$1.71
Available to order
Reference Price (USD)
1+
$1.70718
500+
$1.6901082
1000+
$1.6730364
1500+
$1.6559646
2000+
$1.6388928
2500+
$1.621821
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Chilisin Electronics APPM00121165800XY0 Common Mode Choke is a top-tier solution in our Filters lineup, providing exceptional EMI filtering and signal integrity. Key features include high impedance, low insertion loss, and temperature stability. Applications include power converters, USB interfaces, and audio equipment. Ready to integrate this into your project? Send us your inquiry now!
Specifications
- Product Status: Active
- Filter Type: Power Line
- Number of Lines: 2
- Impedance @ Frequency: 230 Ohms @ 100 MHz
- Inductance @ Frequency: -
- Current Rating (Max): 10A
- DC Resistance (DCR) (Max): 2.2mOhm (Typ)
- Voltage Rating - DC: 80V
- Voltage Rating - AC: -
- Operating Temperature: -40°C ~ 125°C
- Ratings: AEC-Q200
- Approval Agency: -
- Features: -
- Mounting Type: Surface Mount
- Size / Dimension: 0.492" L x 0.425" W (12.50mm x 10.80mm)
- Height (Max): 0.252" (6.40mm)
- Package / Case: Horizontal, 4 PC Pad
