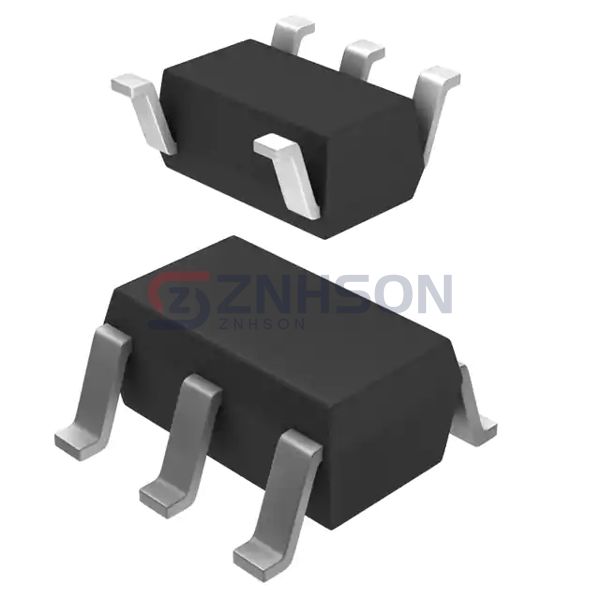

AP2204K-ADJTRG1
Diodes Incorporated
Diodes Incorporated
IC REG LIN POS ADJ 150MA SOT23-5
$0.53
Available to order
Reference Price (USD)
3,000+
$0.12359
6,000+
$0.11610
15,000+
$0.10861
30,000+
$0.09962
75,000+
$0.09587
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with Diodes Incorporated's AP2204K-ADJTRG1, a high-performance Linear Voltage Regulator from our PMIC - Voltage Regulators - Linear category. These ICs are crafted to deliver precise voltage control, making them suitable for sensitive electronic applications. With features like fast transient response, wide input voltage range, and excellent thermal performance, AP2204K-ADJTRG1 is perfect for use in power supplies, audio equipment, and more. Diodes Incorporated is a trusted name in integrated circuits, offering reliability and innovation. Contact our sales team today to place an order or request technical support.
Specifications
- Product Status: Not For New Designs
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 24V
- Voltage - Output (Min/Fixed): 1.24V
- Voltage - Output (Max): 22V
- Voltage Dropout (Max): 0.5V @ 150mA
- Current - Output: 150mA
- Current - Quiescent (Iq): 50 µA
- Current - Supply (Max): 2.5 mA
- PSRR: 60dB (100Hz ~ 1kHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: SC-74A, SOT-753
- Supplier Device Package: SOT-23-5
