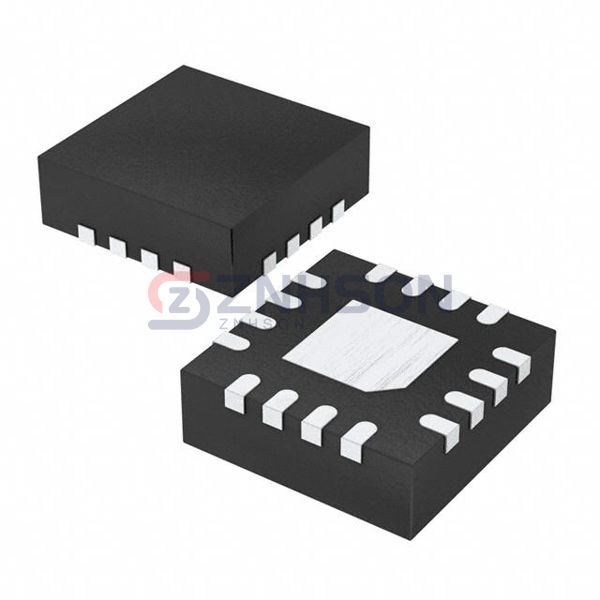

AP1013CEN
Asahi Kasei Microdevices/AKM
Asahi Kasei Microdevices/AKM
IC MOTOR DRIVER 18V 16QFN
$1.10
Available to order
Reference Price (USD)
5,000+
$0.36309
10,000+
$0.34944
25,000+
$0.33852
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Asahi Kasei Microdevices/AKM AP1013CEN series represents the pinnacle of bridge driver technology for professional power electronics. These PMICs feature advanced PWM interface compatibility, programmable current limiting, and real-time status monitoring for system diagnostics. Perfect for high-power audio systems, automated test equipment, and precision servo controls, they deliver clean switching transitions with minimal ringing. The innovative package design enhances thermal dissipation while reducing PCB footprint. Contact our technical sales team for application notes and design-in assistance with these superior bridge drivers.
Specifications
- Product Status: Not For New Designs
- Output Configuration: Half Bridge (2)
- Applications: General Purpose
- Interface: Logic
- Load Type: Inductive
- Technology: Power MOSFET
- Rds On (Typ): -
- Current - Output / Channel: 1.3A
- Current - Peak Output: 5A
- Voltage - Supply: 2.7V ~ 5.5V
- Voltage - Load: 2V ~ 18V
- Operating Temperature: -30°C ~ 150°C (TJ)
- Features: -
- Fault Protection: Over Temperature, UVLO
- Mounting Type: Surface Mount
- Package / Case: 16-UFQFN Exposed Pad
- Supplier Device Package: 16-QFN (3x3)
