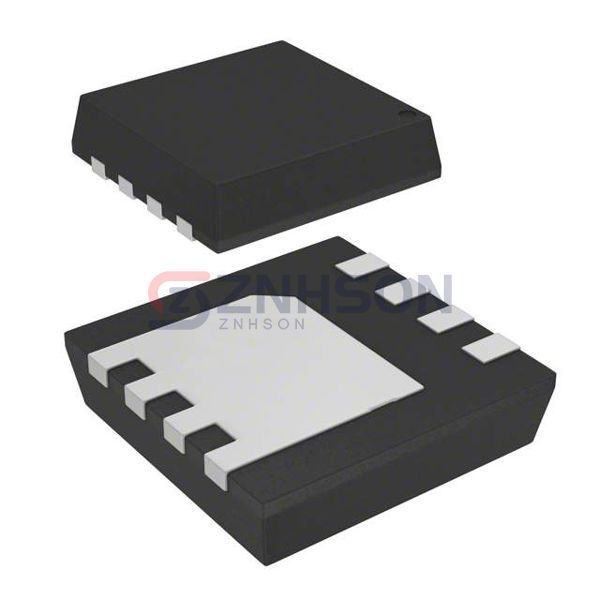

AON7760
Alpha & Omega Semiconductor Inc.
Alpha & Omega Semiconductor Inc.
MOSFET N-CH 25V 33A/75A 8DFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover AON7760, a versatile Transistors - FETs, MOSFETs - Single solution from Alpha & Omega Semiconductor Inc., a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 33A (Ta), 75A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 2mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 76 nC @ 10 V
- Vgs (Max): ±16V
- Input Capacitance (Ciss) (Max) @ Vds: 5520 pF @ 12.5 V
- FET Feature: -
- Power Dissipation (Max): 4.1W (Ta), 34.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-DFN-EP (3.3x3.3)
- Package / Case: 8-PowerWDFN
