ADUM1301WTRWZ35-RL
Analog Devices Inc.
Analog Devices Inc.
DGTL ISO 2500VRMS 3CH GP 16SOIC
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit protection with Analog Devices Inc. ADUM1301WTRWZ35-RL Digital Isolators, delivering superior electrical isolation and signal accuracy. Featuring high common-mode transient immunity, low power dissipation, and multi-channel options, these isolators are ideal for data acquisition, PLCs, and instrumentation. Analog Devices Inc. ADUM1301WTRWZ35-RL stands for quality and innovation. Want to learn more? Submit your inquiry and we ll respond promptly with the best options!
Specifications
- Product Status: Obsolete
- Technology: Magnetic Coupling
- Type: General Purpose
- Isolated Power: No
- Number of Channels: 3
- Inputs - Side 1/Side 2: 2/1
- Channel Type: Unidirectional
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 25kV/µs
- Data Rate: 10Mbps
- Propagation Delay tpLH / tpHL (Max): 32ns, 32ns
- Pulse Width Distortion (Max): 3ns
- Rise / Fall Time (Typ): 2.5ns, 2.5ns
- Voltage - Supply: 3V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC
Related Products
Analog Devices Inc.
ADUM1200WSRZ33-RL7
Analog Devices Inc.
ADUM1300WSRWZ53
NVE Corp/Isolation Products
IL 261B
NVE Corp/Isolation Products
IL 611-1
Analog Devices Inc.
ADUM1100AR
NVE Corp/Isolation Products
IL 610A-3
Analog Devices Inc.
ADUM1400WTRWZ33
Analog Devices Inc.
ADUM1402WSRWZ35
NXP USA Inc.

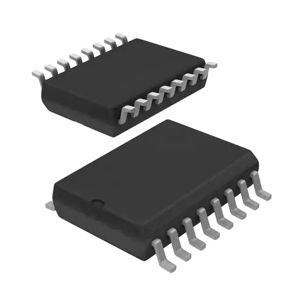

TJA1052IT/1Y
