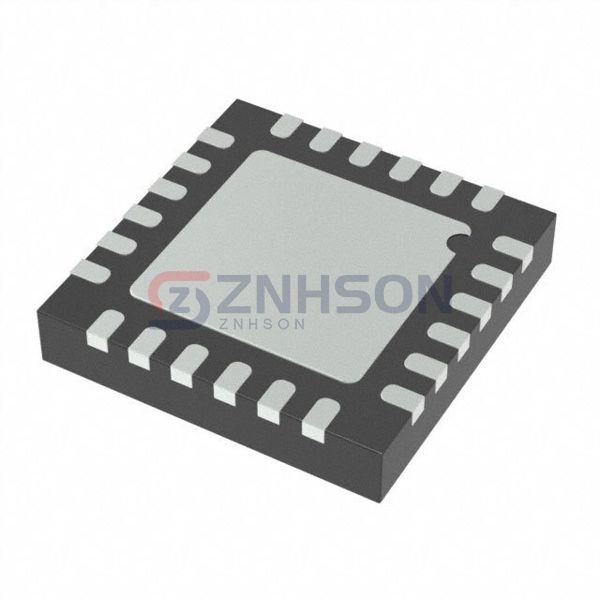

ADGS5412BCPZ
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH QUAD SPST SPI 24LFCSP
$9.44
Available to order
Reference Price (USD)
1+
$8.00000
10+
$7.23100
100+
$5.98670
500+
$5.21312
1,000+
$4.54046
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Transform your signal management with Analog Devices Inc. ADGS5412BCPZ Analog Switches, Multiplexers, and Demultiplexers, offering unparalleled precision and durability. Suitable for renewable energy systems, robotics, and more, these ICs provide high channel count and low distortion. Partner with Analog Devices Inc. for innovative solutions that drive success. Get started by sending us your requirements we're here to help you every step of the way.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 10Ohm
- Channel-to-Channel Matching (ΔRon): 350mOhm
- Voltage - Supply, Single (V+): 9V ~ 40V
- Voltage - Supply, Dual (V±): ±9V ~ 22V
- Switch Time (Ton, Toff) (Max): 530ns, 230ns
- -3db Bandwidth: 160MHz
- Charge Injection: 310pC
- Channel Capacitance (CS(off), CD(off)): 17pF, 17pF
- Current - Leakage (IS(off)) (Max): 250pA
- Crosstalk: -70dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 24-VFQFN Exposed Pad, CSP
- Supplier Device Package: 24-LFCSP (4x4)
Related Products
Vishay Siliconix
DG2517EDQ-T1-GE3
Analog Devices Inc.
ADG202AKP
Intersil
ISL84541IB
Analog Devices Inc./Maxim Integrated
MAX337EWI+
Texas Instruments

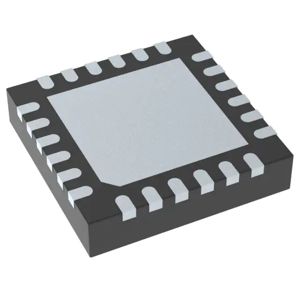

TS3A27518EIRTWRQ1
Vishay Siliconix
DG9424EDQ-T1-GE3
Analog Devices Inc.
ADG1221BRMZ
Analog Devices Inc./Maxim Integrated
MAX4051ESE+T
Analog Devices Inc.

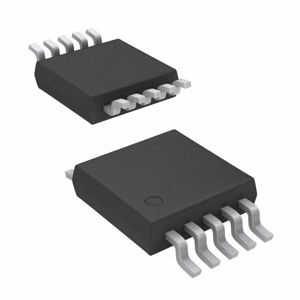

ADG736BRM-REEL7
