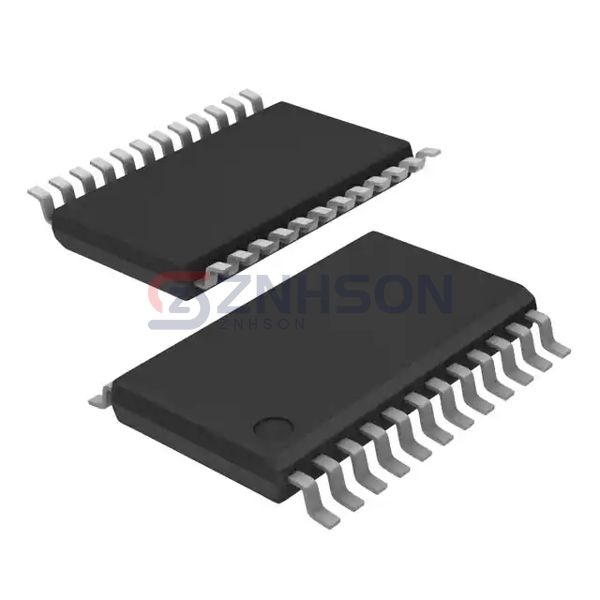

ADG715BRUZ
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH OCTAL SPST 24TSSOP
$6.71
Available to order
Reference Price (USD)
1+
$6.71000
500+
$6.6429
1000+
$6.5758
1500+
$6.5087
2000+
$6.4416
2500+
$6.3745
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Analog Devices Inc. ADG715BRUZ series brings you high-performance Analog Switches, Multiplexers, and Demultiplexers for all your interface needs. Perfect for data loggers, medical imaging, and communication systems, these ICs ensure reliable operation under demanding conditions. Benefit from Analog Devices Inc.'s expertise in signal integrity and power efficiency. Reach out now to learn more and place your order with confidence.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 8
- On-State Resistance (Max): 4.5Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 2.7V ~ 5.5V
- Voltage - Supply, Dual (V±): ±2.5V
- Switch Time (Ton, Toff) (Max): 20ns, 8ns (Typ)
- -3db Bandwidth: 155MHz
- Charge Injection: 3pC
- Channel Capacitance (CS(off), CD(off)): 11pF, 11pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -90dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 24-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 24-TSSOP
Related Products
Intersil
ISL43L711IR
Analog Devices Inc.
ADG802BRMZ
Analog Devices Inc./Maxim Integrated
MAX4659EUA
onsemi
MC74LVX4066DTR2G
onsemi

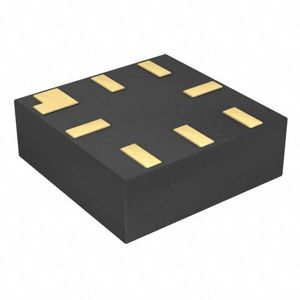

NC7WB66L8X
Vishay Siliconix
DG419LEDY-T1-GE4
Vishay Siliconix

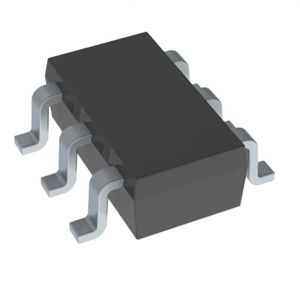

DG468DV-T1-E3
