ADG5401FBCPZ-RL7
Analog Devices Inc.
Analog Devices Inc.
60V OV PROTECTED HV SPSTX1 SWITC
$6.48
Available to order
Reference Price (USD)
1+
$6.48000
500+
$6.4152
1000+
$6.3504
1500+
$6.2856
2000+
$6.2208
2500+
$6.156
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Analog Devices Inc. ADG5401FBCPZ-RL7 series brings you high-performance Analog Switches, Multiplexers, and Demultiplexers for all your interface needs. Perfect for data loggers, medical imaging, and communication systems, these ICs ensure reliable operation under demanding conditions. Benefit from Analog Devices Inc.'s expertise in signal integrity and power efficiency. Reach out now to learn more and place your order with confidence.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 1
- On-State Resistance (Max): 6Ohm (Typ)
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 8V ~ 44V, ±5V ~ 22V
- Voltage - Supply, Dual (V±): 8V ~ 44V, ±5V ~ 22V
- Switch Time (Ton, Toff) (Max): 10.2µs, 360ns
- -3db Bandwidth: 395MHz
- Charge Injection: -230pC
- Channel Capacitance (CS(off), CD(off)): 9pF, 11pF
- Current - Leakage (IS(off)) (Max): 100pA (Typ)
- Crosstalk: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 10-WFDFN, CSP
- Supplier Device Package: 10-LFCSP (3x2)
Related Products
Analog Devices Inc./Maxim Integrated
MAX354CWE+
Analog Devices Inc.
AD7502JN
Analog Devices Inc./Maxim Integrated
MAX303ESE+T
Vishay Siliconix
DG611EEY-T1-GE4
Vishay Siliconix
DG409DQ-E3
Texas Instruments
SN74LV4051ADBR
Analog Devices Inc.
ADG508FBRUZ-REEL7
Analog Devices Inc./Maxim Integrated
MAX4622CSE+T
Renesas Electronics America Inc

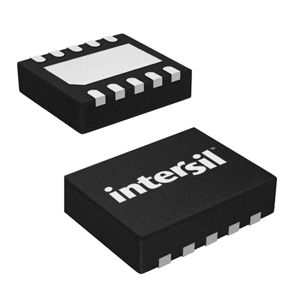

ISL54059IRTZ-T
