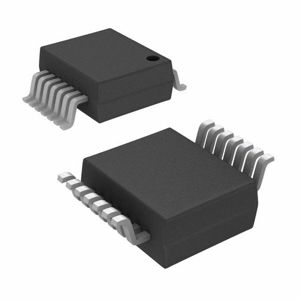

ADG509FBRUZ
Analog Devices Inc.
Analog Devices Inc.
IC MULTIPLEXER DUAL 4X1 16TSSOP
$11.18
Available to order
Reference Price (USD)
1+
$9.25000
96+
$7.97146
192+
$6.92151
576+
$6.02717
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize signal routing with Analog Devices Inc. ADG509FBRUZ Interface ICs, featuring state-of-the-art Analog Switches, Multiplexers, and Demultiplexers. These components are built for precision, offering low leakage current and high-speed operation in automotive infotainment, networking, and more. Choose Analog Devices Inc. for components that exceed expectations. Submit your inquiry today and let us provide the perfect solution for your technical challenges.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 270Ohm (Typ)
- Channel-to-Channel Matching (ΔRon): 8.1Ohm
- Voltage - Supply, Single (V+): 15V
- Voltage - Supply, Dual (V±): ±15V
- Switch Time (Ton, Toff) (Max): 230ns, 130ns
- -3db Bandwidth: -
- Charge Injection: 15pC
- Channel Capacitance (CS(off), CD(off)): 3pF, 12pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 16-TSSOP
