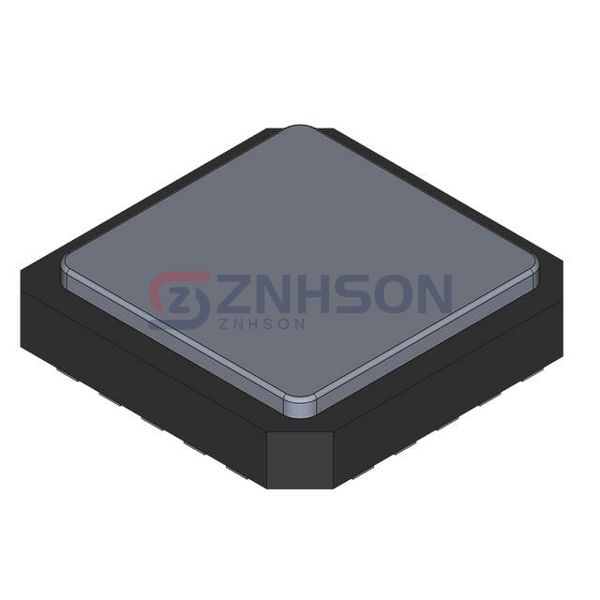

ADG221TE
Analog Devices Inc.
Analog Devices Inc.
QUAD SPST SWITCH
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless integration with Analog Devices Inc. ADG221TE Interface ICs, designed for Analog Switches, Multiplexers, and Demultiplexers applications. These ICs feature compact designs, low voltage operation, and robust ESD protection, ideal for portable electronics and embedded systems. Trust Analog Devices Inc. for components that deliver consistent performance. Contact our team today to request samples or discuss bulk purchasing options.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 90Ohm
- Channel-to-Channel Matching (ΔRon): 4.5Ohm
- Voltage - Supply, Single (V+): ±15V
- Voltage - Supply, Dual (V±): ±15V
- Switch Time (Ton, Toff) (Max): 300ns, 250ns
- -3db Bandwidth: -
- Charge Injection: 20pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 5pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -80dB @ 100kHz
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 20-CLCC
- Supplier Device Package: 20-CLCC (9x9)
