ADG1212YCPZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH QUAD SPST 16LFCSP
$6.18
Available to order
Reference Price (USD)
1+
$6.18000
500+
$6.1182
1000+
$6.0564
1500+
$5.9946
2000+
$5.9328
2500+
$5.871
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Analog Devices Inc. ADG1212YCPZ-REEL7 series brings you high-performance Analog Switches, Multiplexers, and Demultiplexers for all your interface needs. Perfect for data loggers, medical imaging, and communication systems, these ICs ensure reliable operation under demanding conditions. Benefit from Analog Devices Inc.'s expertise in signal integrity and power efficiency. Reach out now to learn more and place your order with confidence.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 190Ohm
- Channel-to-Channel Matching (ΔRon): 2.5Ohm
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): ±4.5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 130ns, 115ns
- -3db Bandwidth: 1GHz
- Charge Injection: -0.3pC
- Channel Capacitance (CS(off), CD(off)): 1.1pF, 1.2pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -90dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount

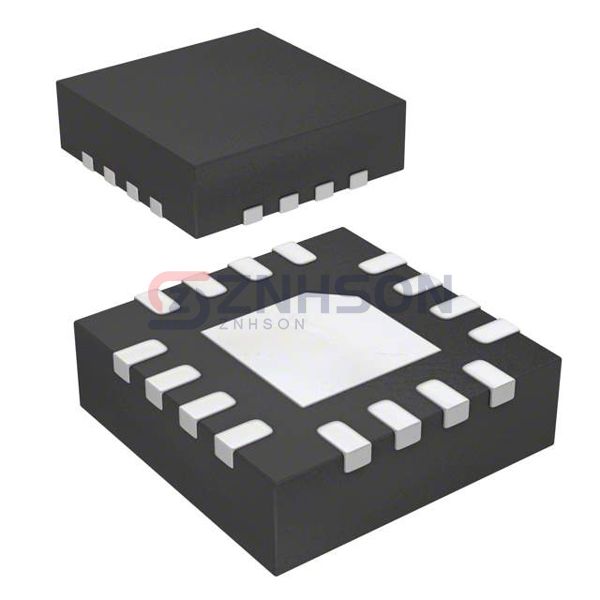

- Package / Case: 16-WFQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP (3x3)
