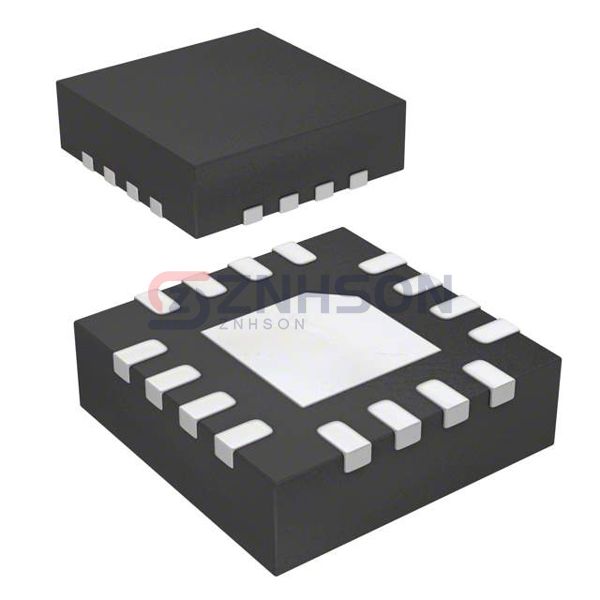

ADG1212YCPZ-500RL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH QUAD SPST 16LFCSP
$6.18
Available to order
Reference Price (USD)
500+
$3.35320
1,000+
$2.82800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize efficiency with Analog Devices Inc. ADG1212YCPZ-500RL7 Interface ICs, delivering top-tier Analog Switches, Multiplexers, and Demultiplexers for your electronic designs. These components excel in test equipment, instrumentation, and IoT devices, providing fast switching and minimal power loss. Trust Analog Devices Inc. for high-performance solutions that stand the test of time. Don't hesitate request a quote now and let us help you achieve optimal performance in your next project.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 190Ohm
- Channel-to-Channel Matching (ΔRon): 2.5Ohm
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): ±4.5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 130ns, 115ns
- -3db Bandwidth: 1GHz
- Charge Injection: -0.3pC
- Channel Capacitance (CS(off), CD(off)): 1.1pF, 1.2pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -90dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WFQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP (3x3)
