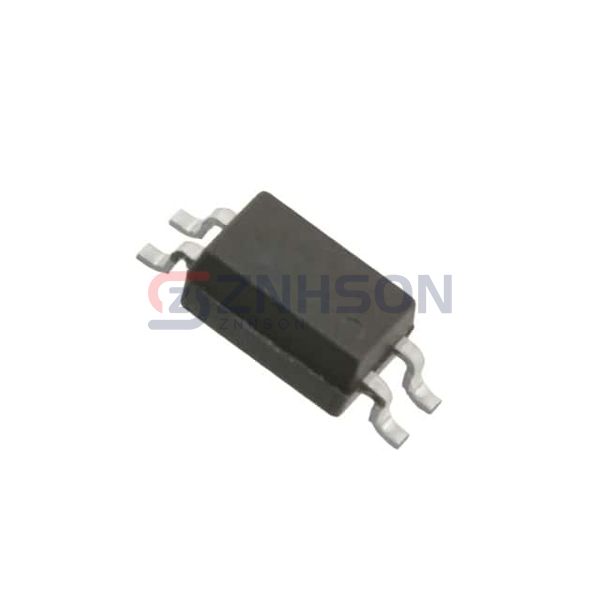

ACPL-K70A-500E
Broadcom Limited
Broadcom Limited
OPTOCOUPLER(100KBD),T/R+LF
$3.59
Available to order
Reference Price (USD)
1+
$3.59000
500+
$3.5541
1000+
$3.5182
1500+
$3.4823
2000+
$3.4464
2500+
$3.4105
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior signal isolation with Broadcom Limited's ACPL-K70A-500E Optoisolators - Transistor, Photovoltaic Output. These components are ideal for data acquisition, process control, and safety systems, offering fast response times and high insulation resistance. With Broadcom Limited's commitment to innovation, you can expect cutting-edge solutions for your technical challenges. Reach out now to request a quote and elevate your designs!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 800% @ 40µA
- Current Transfer Ratio (Max): 25000% @ 40µA
- Turn On / Turn Off Time (Typ): -
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Darlington with Base
- Voltage - Output (Max): 18V
- Current - Output / Channel: 60mA
- Voltage - Forward (Vf) (Typ): 1.4V
- Current - DC Forward (If) (Max): 20 mA
- Vce Saturation (Max): -
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.268", 6.81mm Width)
- Supplier Device Package: 8-SO Stretched
