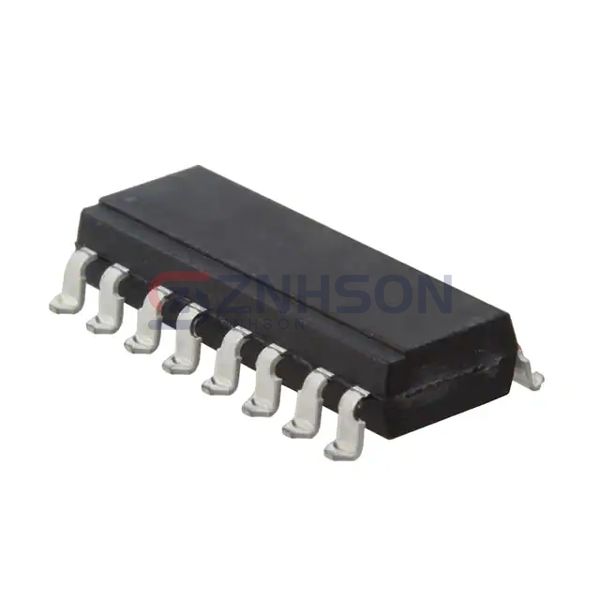

ACPL-847-300E
Broadcom Limited
Broadcom Limited
OPTOISOLTR 5KV 4CH TRANS 16-SMD
$1.88
Available to order
Reference Price (USD)
1+
$1.70000
10+
$1.37900
25+
$1.06040
100+
$0.95450
250+
$0.84840
500+
$0.72114
1,000+
$0.59388
2,500+
$0.56419
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure optimal performance in your electronic designs with ACPL-847-300E Optoisolators from Broadcom Limited. Featuring Photovoltaic Output, these isolators are ideal for applications in automotive, IoT, and smart grid systems, offering high-speed signal transmission and robust isolation. Backed by Broadcom Limited's expertise, these components are a smart investment for any project. Contact us today to discuss your requirements and receive a tailored quote!
Specifications
- Product Status: Active
- Number of Channels: 4
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 50% @ 5mA
- Current Transfer Ratio (Max): 600% @ 5mA
- Turn On / Turn Off Time (Typ): -
- Rise / Fall Time (Typ): 4µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 50 mA
- Vce Saturation (Max): 200mV
- Operating Temperature: -30°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 16-SMD, Gull Wing
- Supplier Device Package: 16-SMD
