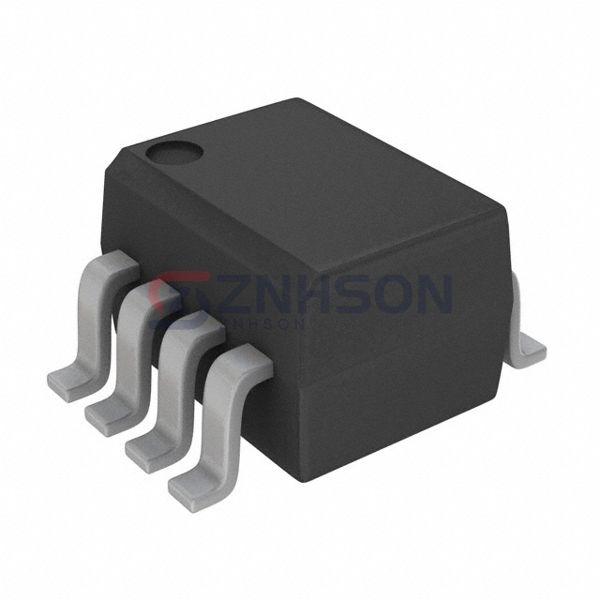

ACPL-227-500E
Broadcom Limited
Broadcom Limited
OPTOISOLATOR 3KV 2CH TRANS 8SOIC
$1.22
Available to order
Reference Price (USD)
2,000+
$0.36672
6,000+
$0.35845
10,000+
$0.34466
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your system's efficiency with ACPL-227-500E Optoisolators by Broadcom Limited, designed for Photovoltaic Output applications. These isolators are perfect for isolating digital signals, protecting microcontrollers, and ensuring safe operation in high-voltage environments. Suitable for consumer electronics, aerospace, and defense applications, they deliver consistent performance under extreme conditions. Get started today contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Number of Channels: 2
- Voltage - Isolation: 3000Vrms
- Current Transfer Ratio (Min): 50% @ 5mA
- Current Transfer Ratio (Max): 600% @ 5mA
- Turn On / Turn Off Time (Typ): 3µs, 3µs
- Rise / Fall Time (Typ): 2µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 80V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 50 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.173", 4.40mm Width)
- Supplier Device Package: 8-SO
